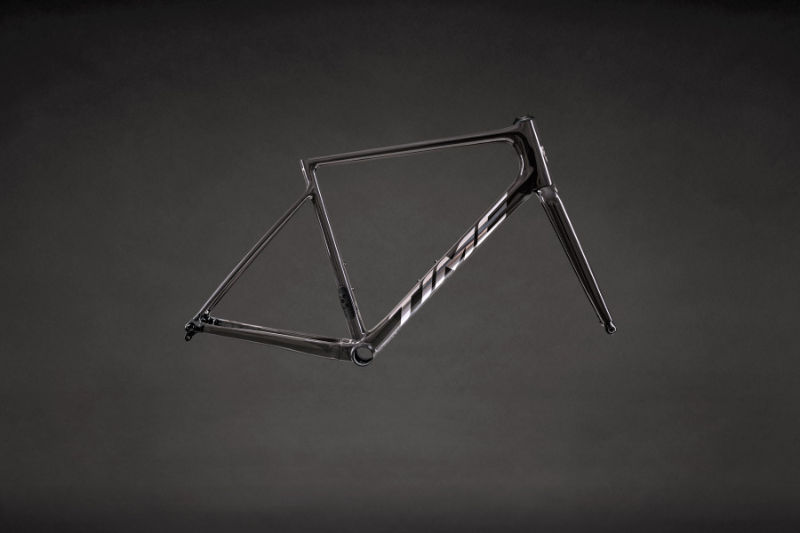

2025 Time Fluidity Disc geometry
Full frame geometry for the 2025 Time Fluidity Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 540 | 362 | 73.7 | 70.5 | 134 | 530 | 462 | 762 | 71 | 589 | 425 | 1004 | 53 | 73 |
| S | 560 | 368 | 73 | 71.5 | 150 | 544 | 488 | 788 | 71 | 591 | 425 | 1006 | 53 | 66 |
| M | 580 | 378 | 73 | 72.5 | 168 | 559 | 508 | 812 | 71 | 598 | 425 | 1012 | 53 | 60 |
| L | 600 | 386 | 73 | 72.5 | 188 | 575 | 540 | 828 | 71 | 613 | 425 | 1026 | 53 | 60 |
| XL | 620 | 391 | 73 | 72.5 | 208 | 591 | 559 | 857 | 71 | 618 | 425 | 1033 | 53 | 60 |
All measurements in millimetres unless marked (°) for angles.
