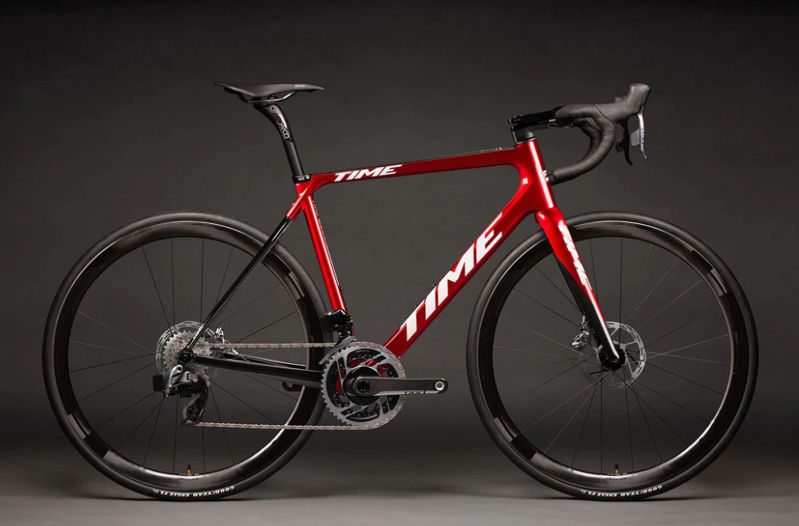

2023 Time Alpe D'Huez Disc geometry
Full frame geometry for the 2023 Time Alpe D'Huez Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 514 | 372 | 74.7 | 71 | 122 | 513 | 430 | 65 | 576 | 410 | 977 | 43 | 70 |
| S | 538 | 377 | 74 | 72.5 | 142 | 531 | 460 | 65 | 575 | 410 | 976 | 43 | 61 |
| M | 562 | 383 | 73 | 73 | 166 | 555 | 490 | 65 | 584 | 410 | 985 | 43 | 57 |
| L | 582 | 392 | 73 | 73 | 186 | 570 | 520 | 65 | 598 | 410 | 1000 | 43 | 57 |
| XL | 601 | 397 | 73 | 73.5 | 204 | 580 | 540 | 65 | 604 | 410 | 100 | 43 | 55 |
All measurements in millimetres unless marked (°) for angles.
