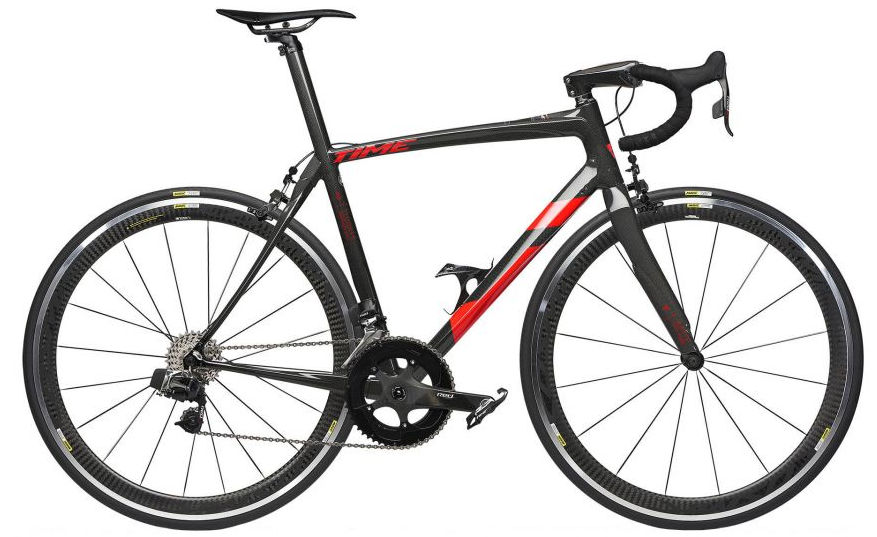

2018 Time Fluidity MK 2 geometry
Full frame geometry for the 2018 Time Fluidity MK 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXXS | 513 | 367 | 75.5 | 70.5 | 123 | 505 | 470 | 402 | 965 | 43 | 74 |
| XXS | 537 | 364 | 74.7 | 71 | 147 | 515 | 495 | 402 | 968 | 43 | 70 |
| S | 546 | 367 | 73 | 72 | 155 | 540 | 530 | 404 | 971 | 43 | 64 |
| XS | 546 | 368 | 73.7 | 71.5 | 155 | 530 | 510 | 402 | 968 | 43 | 68 |
| M | 580 | 378 | 73 | 73 | 184 | 555 | 550 | 404 | 978 | 43 | 58 |
| L | 596 | 388 | 73 | 73 | 201 | 570 | 570 | 404 | 993 | 43 | 58 |
| XL | 615 | 392 | 73 | 73.5 | 219 | 580 | 590 | 404 | 999 | 43 | 55 |
All measurements in millimetres unless marked (°) for angles.
