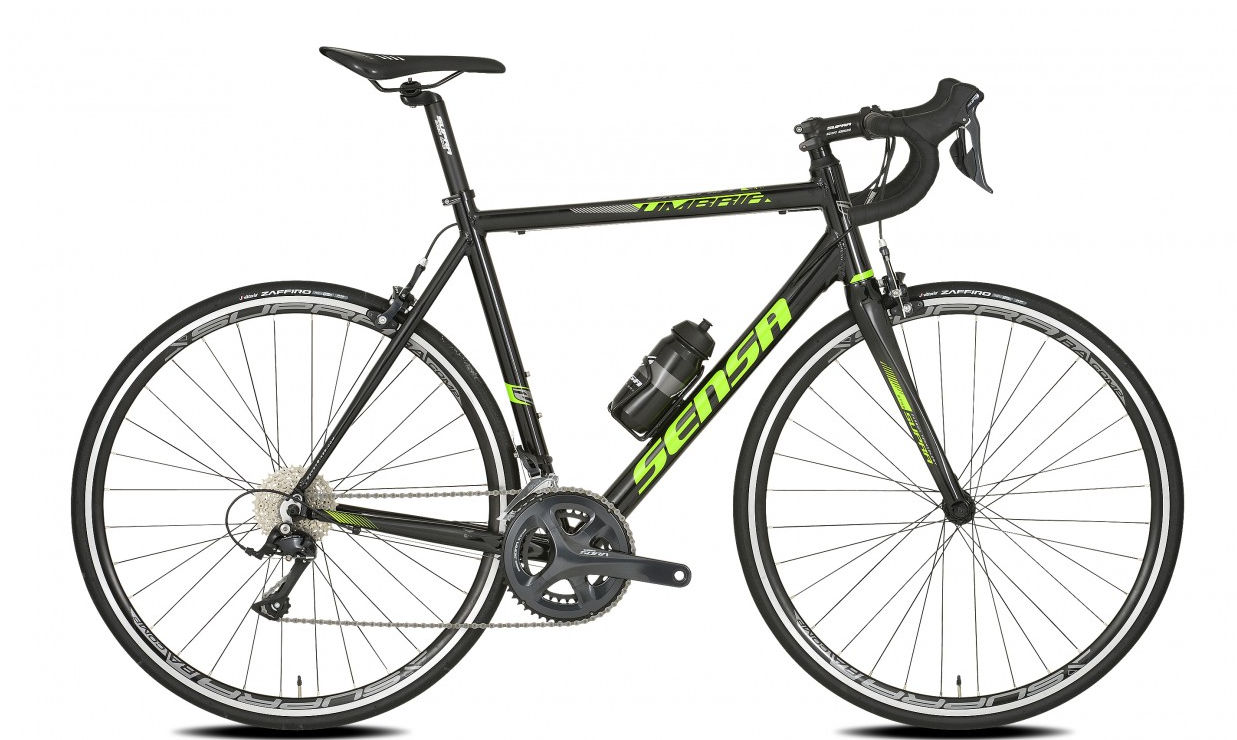

2018 Sensa Umbria geometry
Full frame geometry for the 2018 Sensa Umbria, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 526 | 372 | 74 | 72 | 125 | 523 | 470 | 768 | 68 | 972 | 45 |
| 51 | 545 | 375 | 74 | 72 | 145 | 532 | 510 | 798 | 68 | 981 | 45 |
| 53 | 561 | 378 | 73.5 | 72.5 | 160 | 544 | 530 | 817 | 68 | 984 | 45 |
| 56 | 576 | 384 | 73.5 | 72.8 | 175 | 554 | 560 | 840 | 68 | 992 | 45 |
| 58 | 598 | 391 | 73.5 | 73 | 200 | 568 | 580 | 862 | 68 | 1004 | 45 |
| 61 | 620 | 396 | 72.5 | 73 | 220 | 591 | 610 | 890 | 68 | 1015 | 45 |
All measurements in millimetres unless marked (°) for angles.
