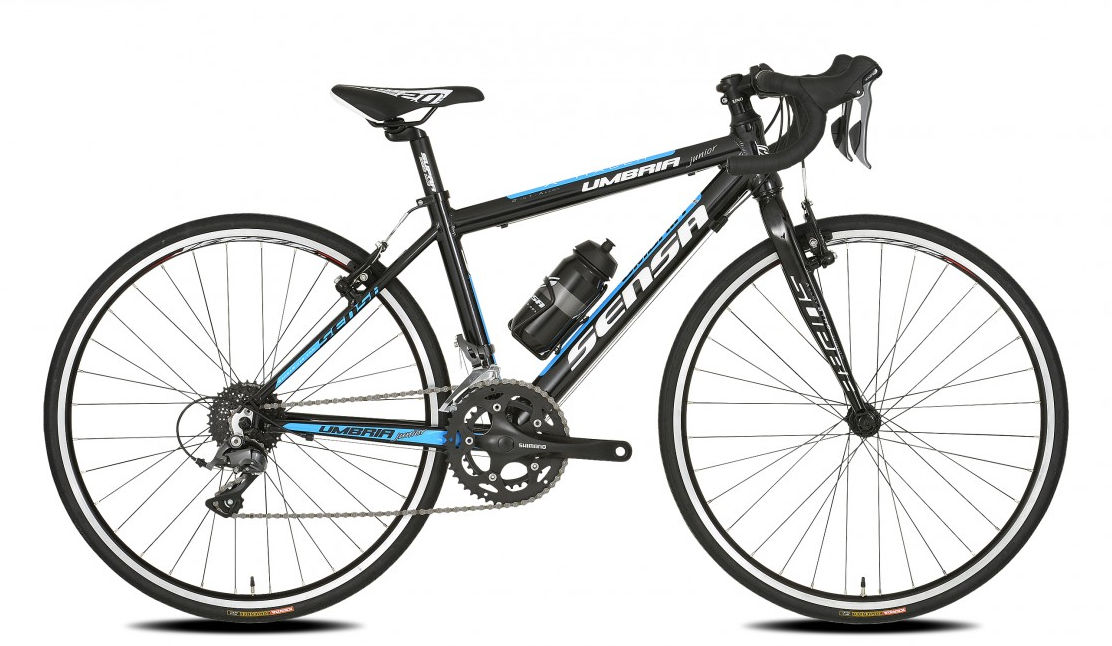

2018 Sensa Umbria JR geometry
Full frame geometry for the 2018 Sensa Umbria JR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 474 | 360 | 74.5 | 72 | 105 | 491 | 380 | 731 | 10 | 931 | 40 |
All measurements in millimetres unless marked (°) for angles.
