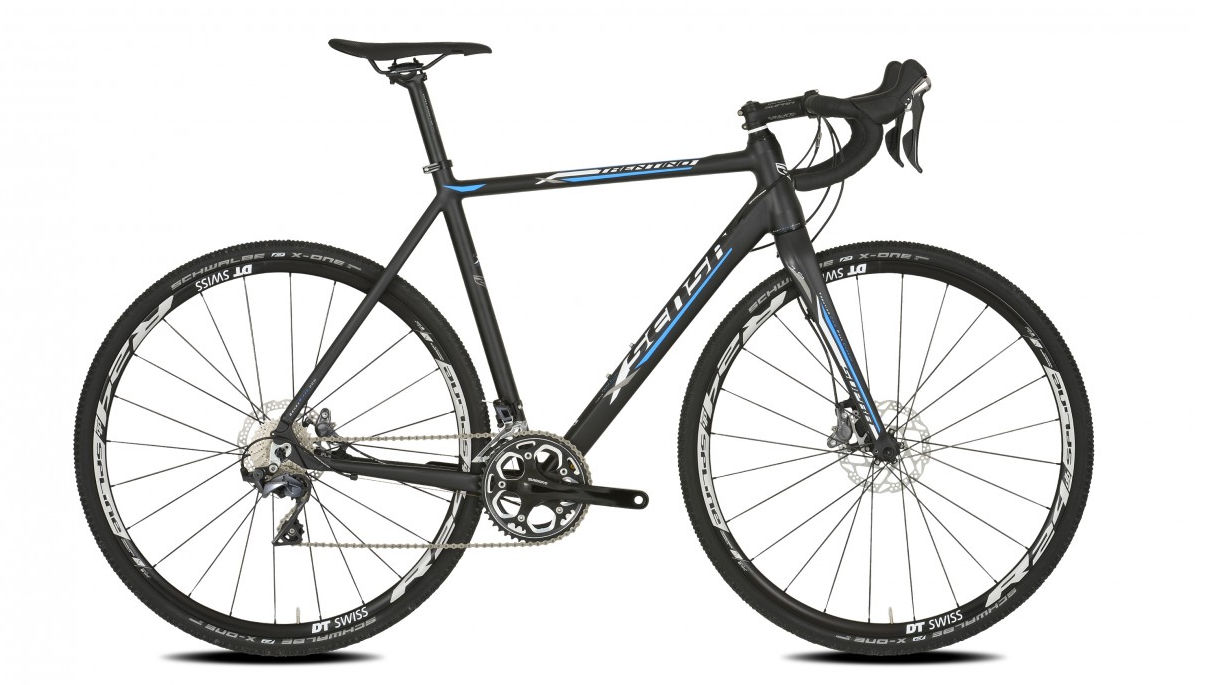

2018 Sensa Trentino CXD geometry
Full frame geometry for the 2018 Sensa Trentino CXD, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 560 | 374 | 74 | 72 | 140 | 535 | 520 | 809 | 68 | 1004 | 45 |
| 56 | 575 | 377 | 73.5 | 72 | 155 | 547 | 560 | 838 | 68 | 1012 | 45 |
| 58 | 598 | 386 | 73.5 | 72 | 180 | 563 | 580 | 860 | 68 | 1028 | 45 |
| 61 | 621 | 397 | 73.5 | 73 | 200 | 581 | 610 | 887 | 68 | 1036 | 45 |
All measurements in millimetres unless marked (°) for angles.
