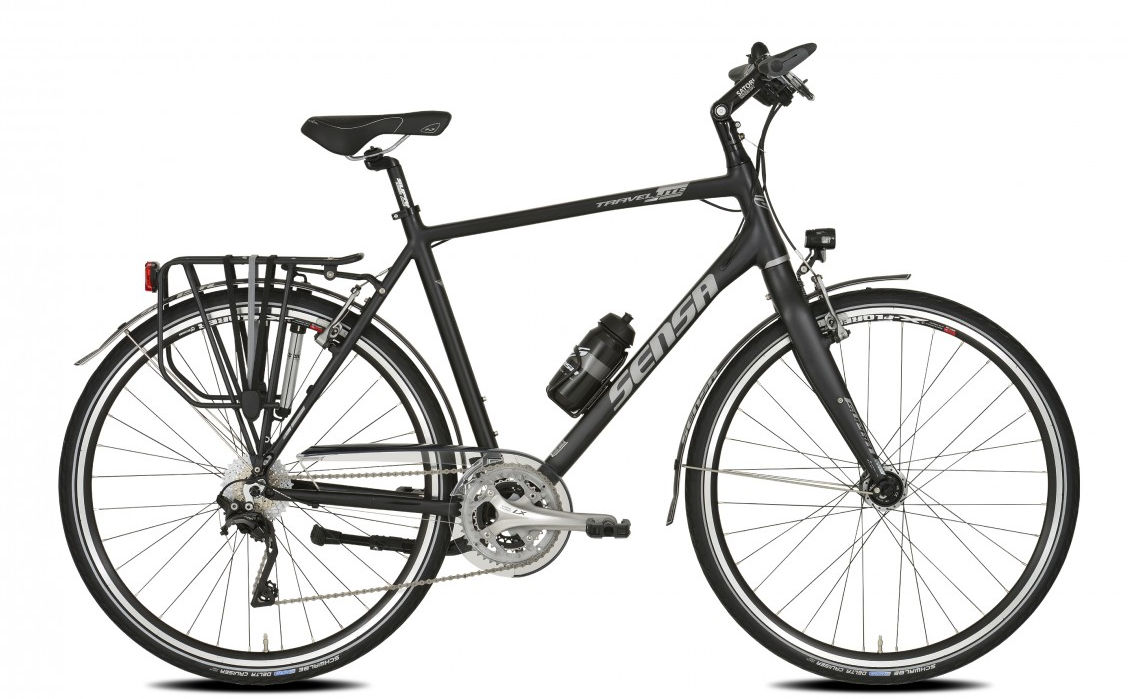

2018 Sensa Travel Lite geometry
Full frame geometry for the 2018 Sensa Travel Lite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 604 | 398 | 71 | 69.5 | 170 | 591 | 521 | 836 | 68 | 1086 | 45 |
| 56 | 618 | 406 | 71 | 69.5 | 185 | 603 | 559 | 863 | 68 | 1099 | 45 |
| 61 | 633 | 420 | 71 | 69.5 | 200 | 622 | 610 | 897 | 68 | 1119 | 45 |
All measurements in millimetres unless marked (°) for angles.
