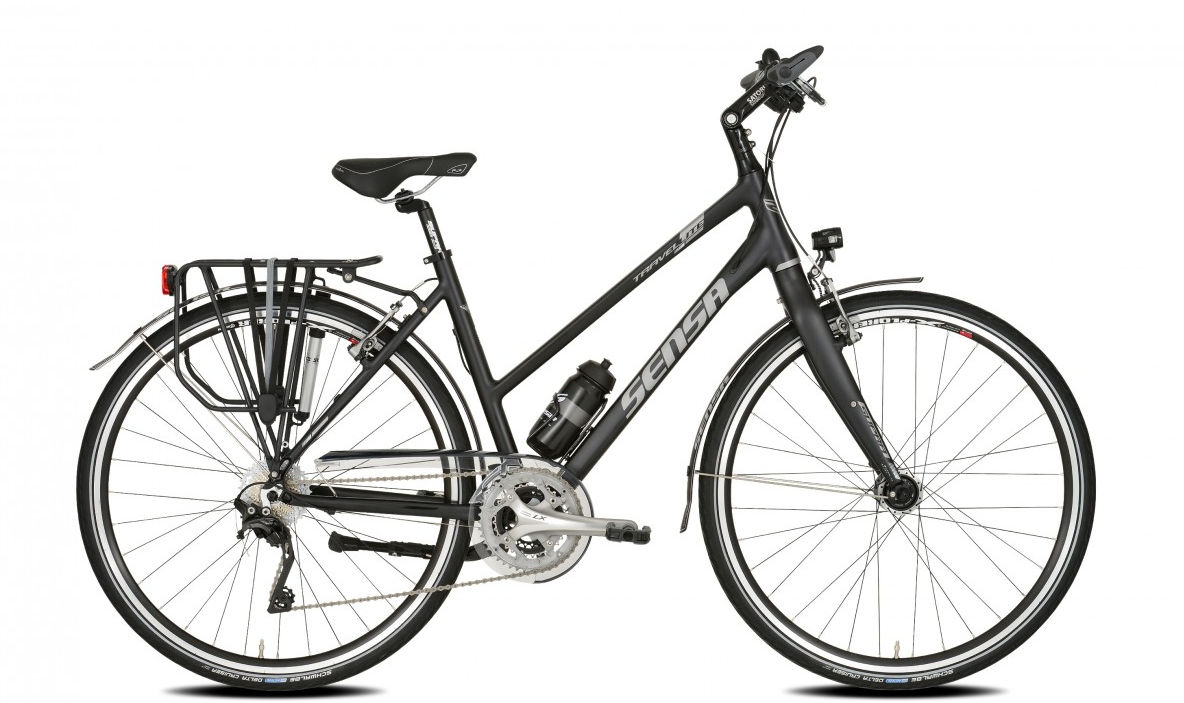

2018 Sensa Travel Lite Lady geometry
Full frame geometry for the 2018 Sensa Travel Lite Lady, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 607 | 389 | 71 | 69 | 175 | 582 | 483 | 817 | 68 | 1084 | 45 |
| 53 | 621 | 400 | 71 | 69 | 190 | 598 | 533 | 850 | 68 | 1100 | 45 |
| 57 | 637 | 415 | 71 | 69.5 | 205 | 618 | 572 | 879 | 68 | 1115 | 45 |
All measurements in millimetres unless marked (°) for angles.
