2018 Sensa · U

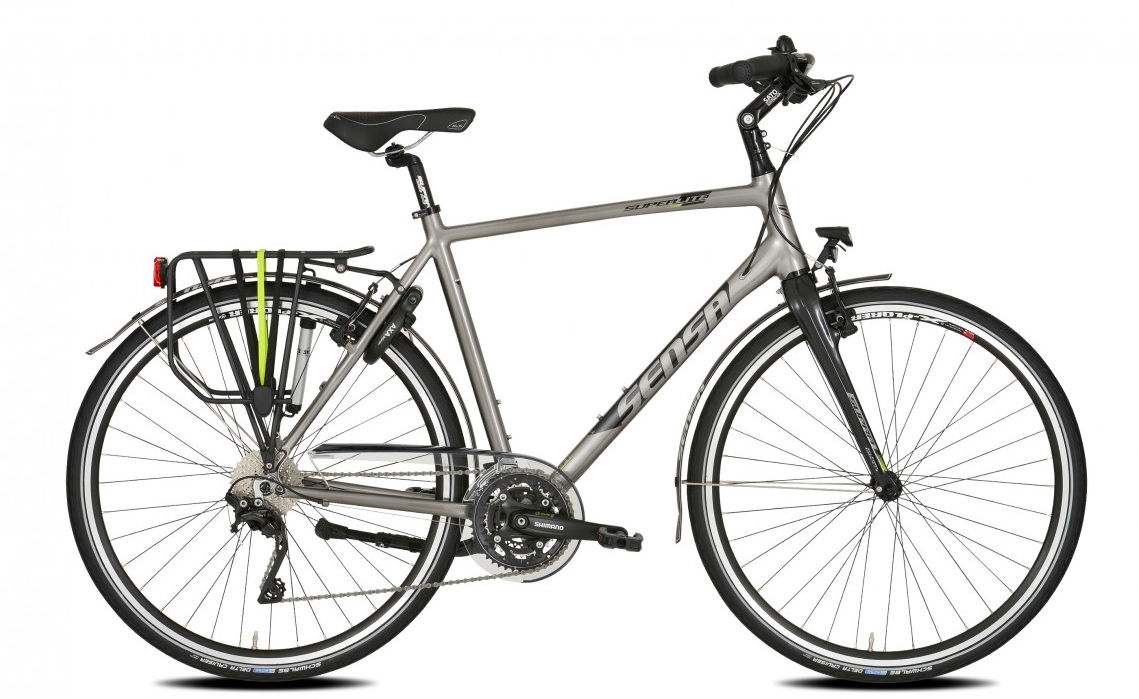

2018 Sensa Superlite geometry
Full frame geometry for the 2018 Sensa Superlite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 577 | 400 | 73 | 71.5 | 170 | 591 | 521 | 819 | 68 | 1073 | 45 |
| 56 | 591 | 408 | 73 | 71.5 | 185 | 603 | 559 | 846 | 68 | 1086 | 45 |
| 61 | 616 | 422 | 73 | 71.5 | 200 | 622 | 610 | 885 | 68 | 1106 | 45 |
All measurements in millimetres unless marked (°) for angles.
