2018 Sensa · UW

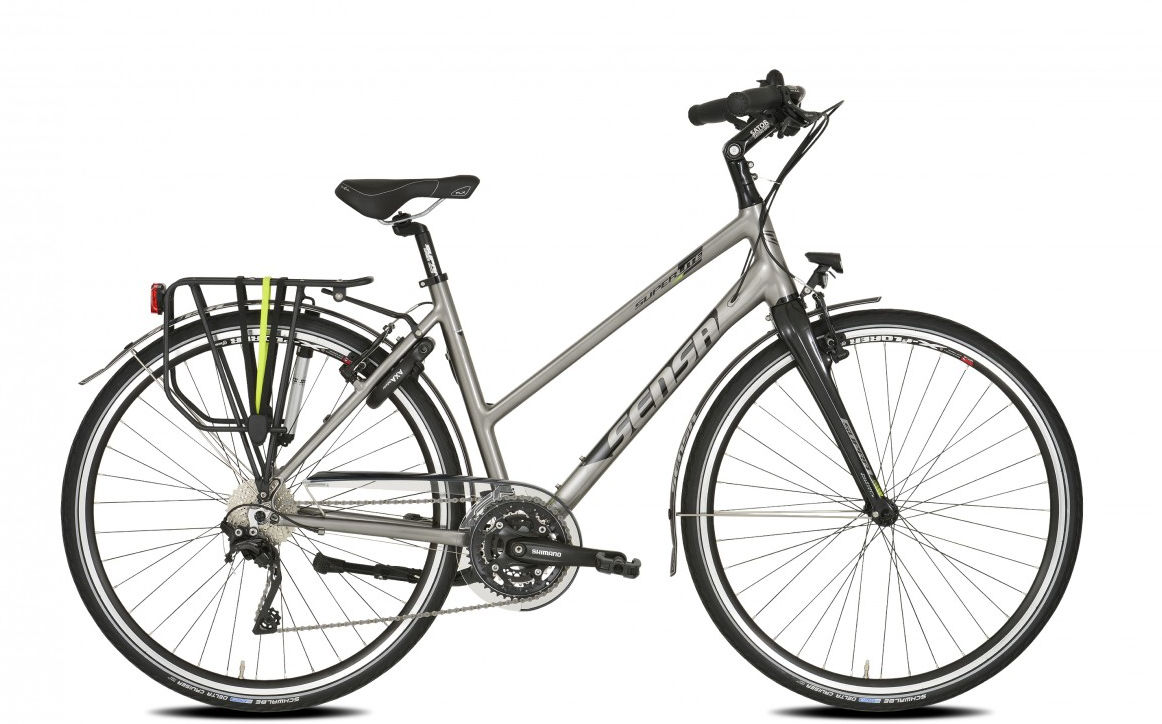

2018 Sensa Superlite Lady geometry
Full frame geometry for the 2018 Sensa Superlite Lady, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 580 | 391 | 73 | 71 | 175 | 582 | 483 | 801 | 68 | 1071 | 45 |
| 53 | 594 | 402 | 73 | 71 | 190 | 598 | 533 | 834 | 68 | 1087 | 45 |
| 57 | 610 | 417 | 73 | 71.5 | 205 | 618 | 572 | 862 | 68 | 1102 | 45 |
All measurements in millimetres unless marked (°) for angles.
