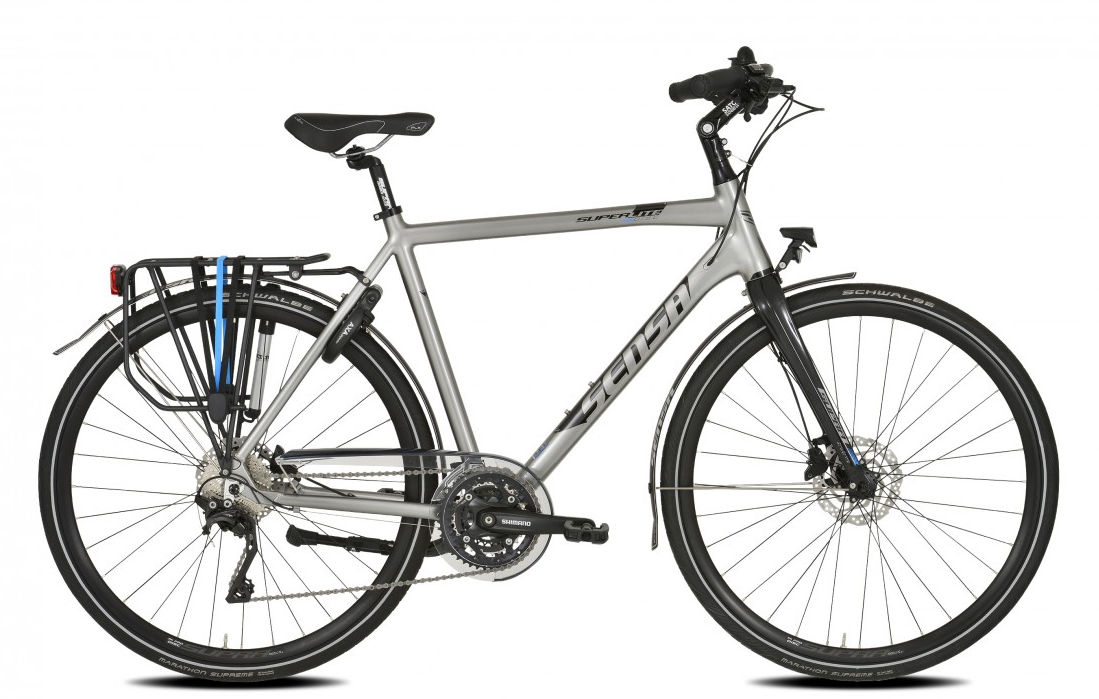

2018 Sensa Superlite Disc geometry
Full frame geometry for the 2018 Sensa Superlite Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 561 | 405 | 72 | 70 | 155 | 587 | 510 | 812 | 68 | 1079 | 45 |
| 56 | 580 | 410 | 72 | 70 | 175 | 598 | 560 | 848 | 68 | 1090 | 45 |
| 61 | 613 | 417 | 72 | 70 | 210 | 616 | 610 | 890 | 68 | 1109 | 45 |
All measurements in millimetres unless marked (°) for angles.
