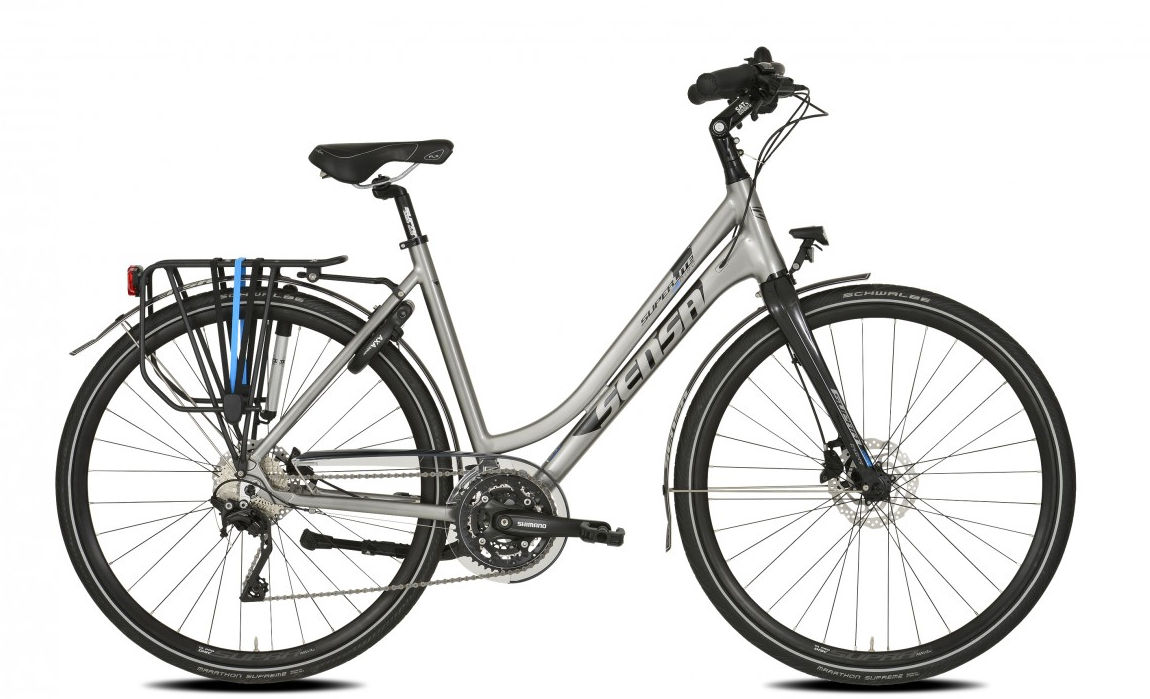

2018 Sensa Superlite Disc Lady geometry
Full frame geometry for the 2018 Sensa Superlite Disc Lady, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 570 | 402 | 72 | 70 | 165 | 588 | 460 | 790 | 68 | 1079 | 45 |
| 51 | 585 | 407 | 72 | 70 | 180 | 597 | 510 | 824 | 68 | 1089 | 45 |
| 56 | 603 | 410 | 72 | 70 | 200 | 606 | 560 | 859 | 68 | 1099 | 45 |
All measurements in millimetres unless marked (°) for angles.
