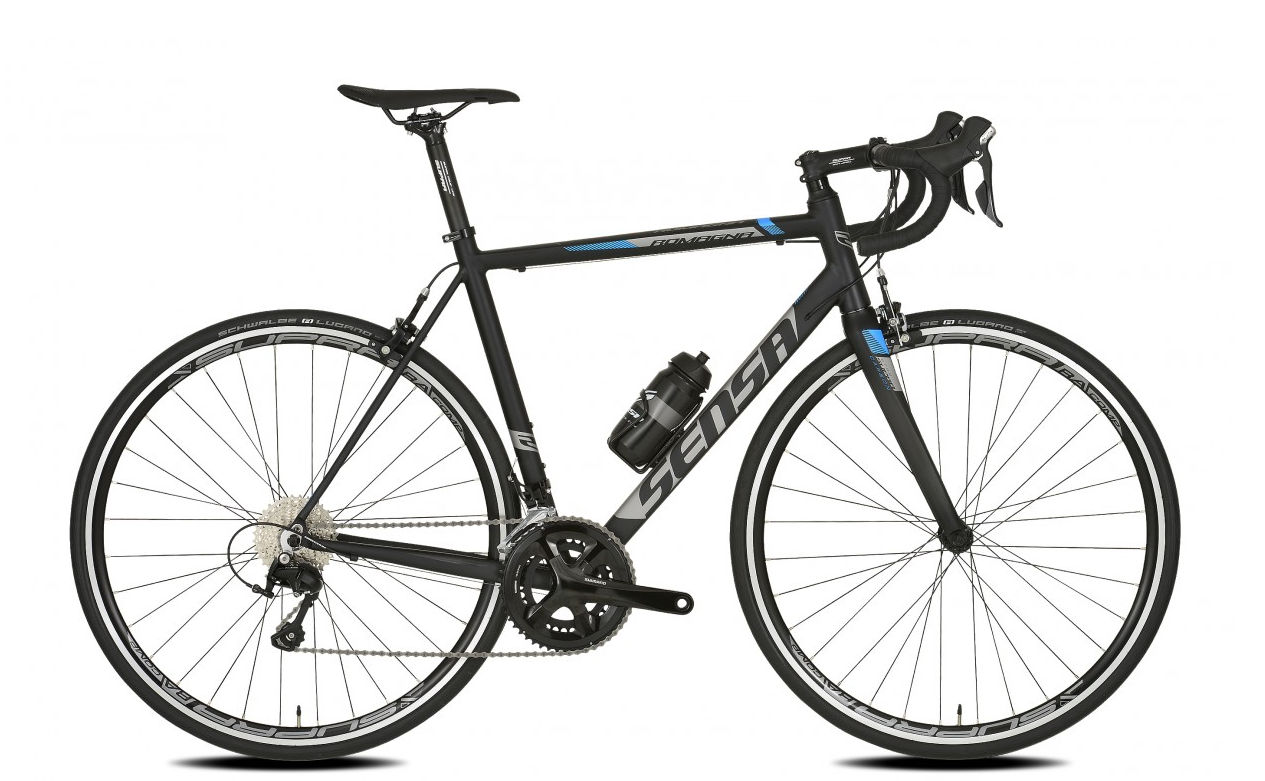

2018 Sensa Romagna geometry
Full frame geometry for the 2018 Sensa Romagna, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 532 | 373 | 74 | 72 | 130 | 525 | 490 | 781 | 68 | 976 | 45 |
| 52 | 541 | 378 | 73.5 | 72 | 140 | 539 | 520 | 802 | 68 | 985 | 45 |
| 55 | 572 | 385 | 73.5 | 72.5 | 170 | 545 | 550 | 833 | 68 | 996 | 45 |
| 58 | 591 | 392 | 73 | 72.5 | 190 | 573 | 580 | 859 | 68 | 1010 | 45 |
| 61 | 612 | 401 | 72.5 | 73 | 210 | 594 | 610 | 886 | 68 | 1020 | 45 |
| 64 | 631 | 403 | 72.5 | 73 | 230 | 602 | 640 | 911 | 68 | 1028 | 45 |
All measurements in millimetres unless marked (°) for angles.
