2026 Sensa · RD

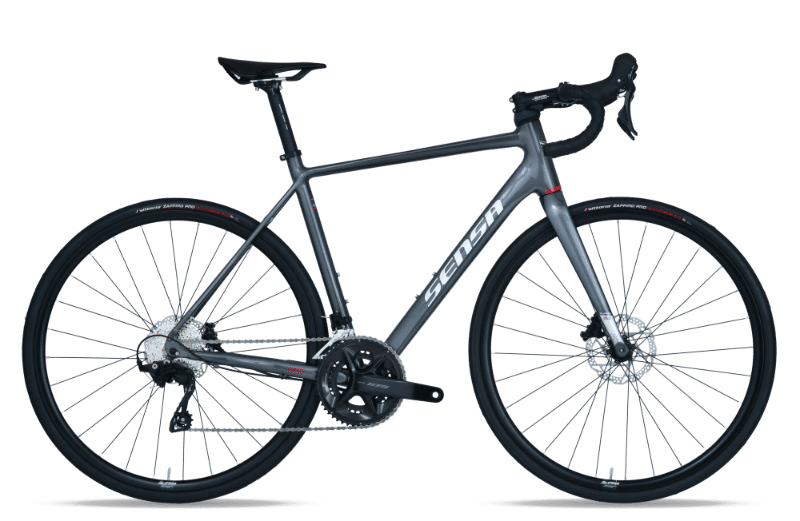

2026 Sensa Romagna RS geometry
Full frame geometry for the 2026 Sensa Romagna RS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 547 | 366 | 74.5 | 71.5 | 135 | 501 | 465 | 45 | 385 | 987 |
| 51 | 553 | 372 | 74.5 | 72 | 140 | 510 | 500 | 45 | 385 | 990 |
| 55 | 580 | 380 | 73.5 | 72.5 | 165 | 534 | 540 | 45 | 385 | 1002 |
| 58 | 608 | 385 | 73 | 72.5 | 195 | 555 | 575 | 45 | 385 | 1017 |
| 62 | 624 | 391 | 73 | 73 | 210 | 568 | 610 | 45 | 385 | 1021 |
All measurements in millimetres unless marked (°) for angles.
