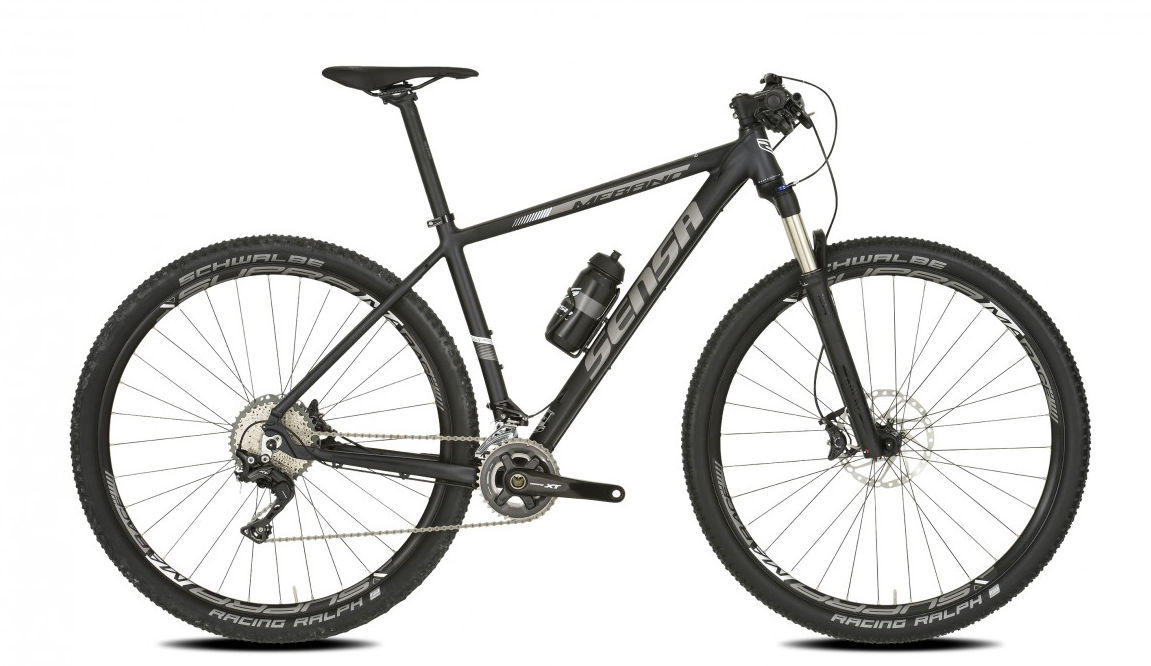

2018 Sensa Merano geometry
Full frame geometry for the 2018 Sensa Merano, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 593 | 390 | 73.5 | 71 | 100 | 566 | 406 | 816 | 30 | 1052 | 42 |
| 18 | 603 | 413 | 73.5 | 71 | 110 | 592 | 457 | 847 | 30 | 1087 | 42 |
| 17 | 611 | 404 | 73.5 | 70.5 | 90 | 584 | 432 | 837 | 50 | 1081 | 46 |
| 19 | 621 | 416 | 73.5 | 70.5 | 100 | 600 | 483 | 869 | 50 | 1097 | 46 |
| 21 | 635 | 432 | 73.5 | 70.5 | 115 | 620 | 533 | 902 | 50 | 1118 | 46 |
| 23 | 649 | 442 | 73.5 | 70.5 | 130 | 635 | 584 | 936 | 50 | 1133 | 46 |
All measurements in millimetres unless marked (°) for angles.
