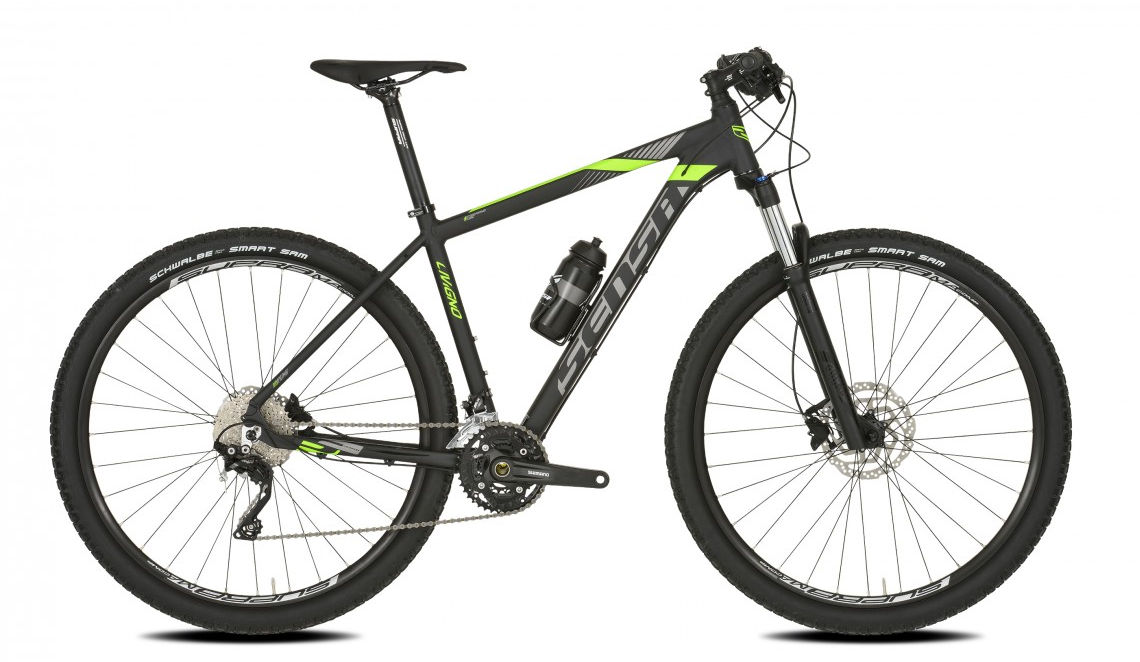

2018 Sensa Livigno geometry
Full frame geometry for the 2018 Sensa Livigno, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 600 | 380 | 73.5 | 70 | 115 | 558 | 406 | 819 | 30 | 1059 | 42 |
| 18 | 604 | 396 | 73.5 | 70 | 120 | 575 | 457 | — | — | 1077 | 42 |
| 17 | 632 | 382 | 73.5 | 70 | 115 | 569 | 432 | 848 | 50 | 1083 | 46 |
| 19 | 637 | 401 | 73.5 | 70 | 120 | 590 | 483 | 877 | 50 | 1103 | 46 |
| 21 | 641 | 425 | 73.5 | 70 | 125 | 615 | 533 | 905 | 50 | 1129 | 46 |
| 23 | 651 | 449 | 73.5 | 70 | 135 | 642 | 584 | — | — | 1156 | 46 |
All measurements in millimetres unless marked (°) for angles.
