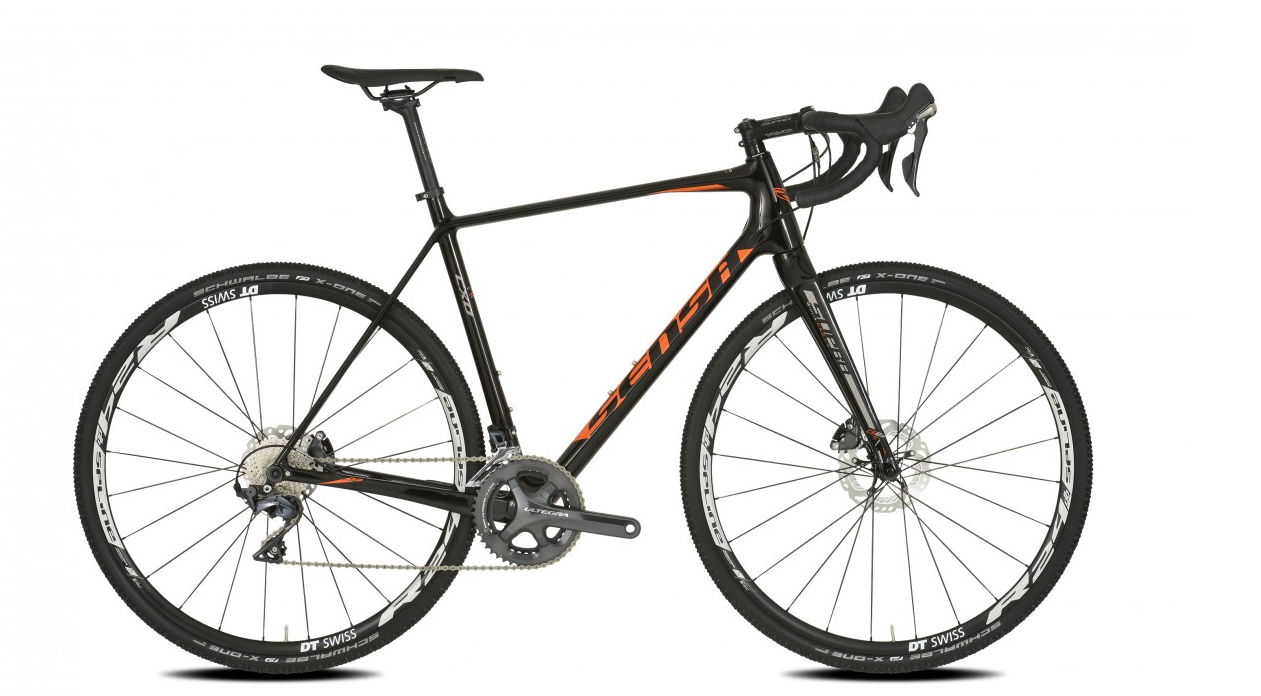

2018 Sensa Giulia CXD geometry
Full frame geometry for the 2018 Sensa Giulia CXD, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 551 | 377 | 74.5 | 71 | 125 | 530 | 520 | 803 | 69 | 425 | 1010 | 45 |
| 54 | 572 | 380 | 74 | 71.5 | 145 | 545 | 540 | 824 | 69 | 425 | 1016 | 45 |
| 56 | 588 | 385 | 73.5 | 72 | 160 | 560 | 560 | 843 | 69 | 425 | 1021 | 45 |
| 58 | 604 | 390 | 73 | 72.5 | 175 | 575 | 580 | 862 | 69 | 425 | 1025 | 45 |
| 60 | 619 | 405 | 73 | 72.5 | 190 | 595 | 600 | 880 | 69 | 425 | 1045 | 45 |
All measurements in millimetres unless marked (°) for angles.
