2018 Sensa · MH

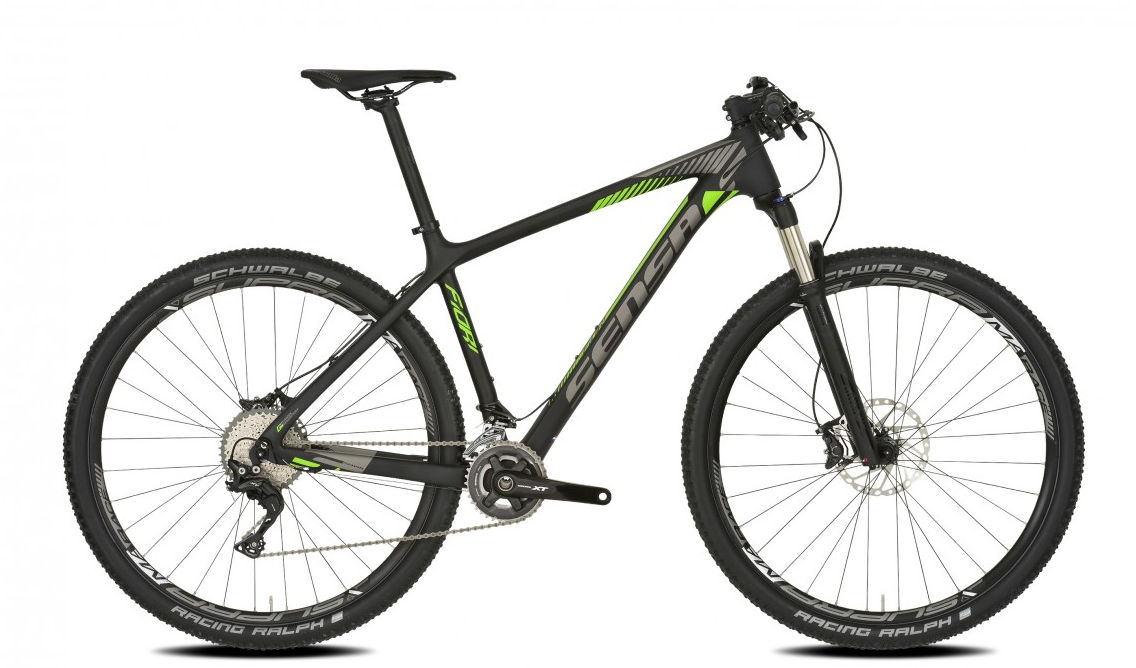

2018 Sensa Fiori geometry
Full frame geometry for the 2018 Sensa Fiori, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 610 | 395 | 72.5 | 71 | 100 | 584 | 394 | 818 | 50 | 1083 | 46 |
| 16.5 | 625 | 406 | 72.5 | 71 | 110 | 600 | 419 | 839 | 50 | 1089 | 46 |
| 19 | 639 | 421 | 72.5 | 71 | 125 | 619 | 483 | 879 | 50 | 1109 | 46 |
| 21 | 658 | 434 | 72.5 | 71 | 145 | 638 | 533 | 915 | 50 | 1129 | 46 |
All measurements in millimetres unless marked (°) for angles.
