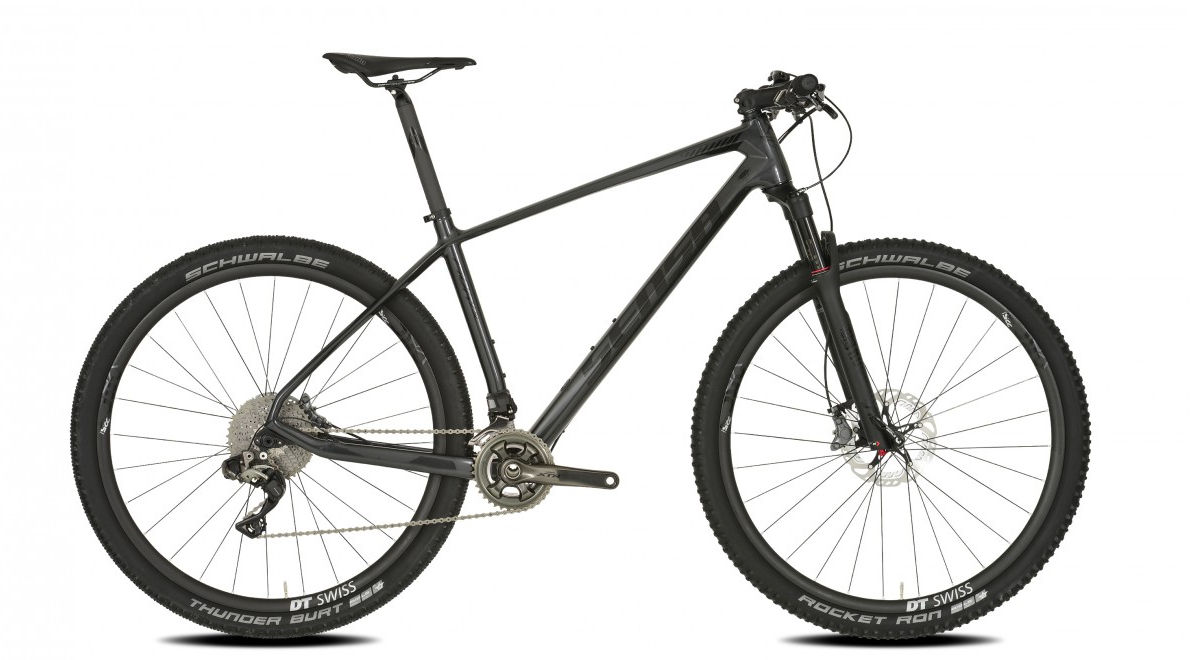

2018 Sensa Fiori SL geometry
Full frame geometry for the 2018 Sensa Fiori SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 598 | 398 | 73.5 | 70 | 95 | 570 | 409 | 819 | 50 | 1077 | 51 |
| 17.5 | 608 | 410 | 73 | 70.4 | 100 | 595 | 447 | 844 | 50 | 1083 | 51 |
| 19 | 634 | 442 | 72.5 | 71.1 | 123 | 619 | 483 | 877 | 50 | 1115 | 51 |
| 20.5 | 654 | 454 | 72.5 | 71.1 | 145 | 638 | 533 | 913 | 50 | 1135 | 51 |
All measurements in millimetres unless marked (°) for angles.
