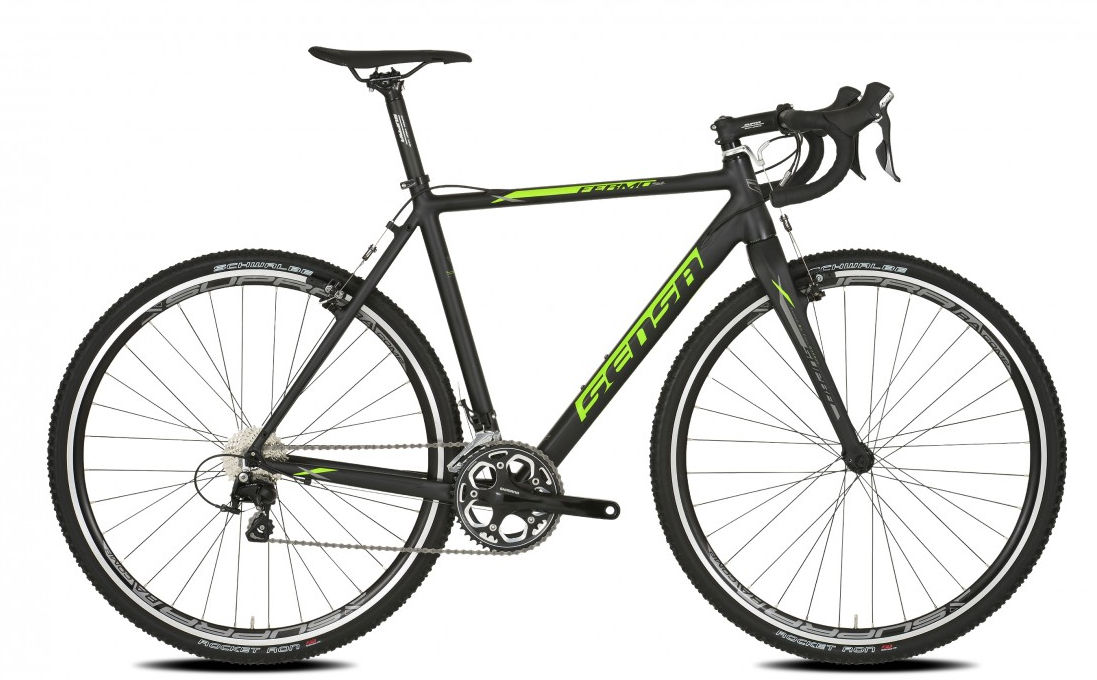

2018 Sensa Fermo SL geometry
Full frame geometry for the 2018 Sensa Fermo SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 550 | 362 | 74 | 72 | 130 | 510 | 798 | 68 | 1004 | 45 |
| 55 | 559 | 373 | 74 | 72 | 140 | 550 | 824 | 68 | 1012 | 45 |
| 58 | 578 | 385 | 74 | 72 | 160 | 580 | 849 | 68 | 1028 | 45 |
| 61 | 610 | 391 | 74 | 73 | 190 | 610 | 880 | 68 | 1036 | 45 |
All measurements in millimetres unless marked (°) for angles.
