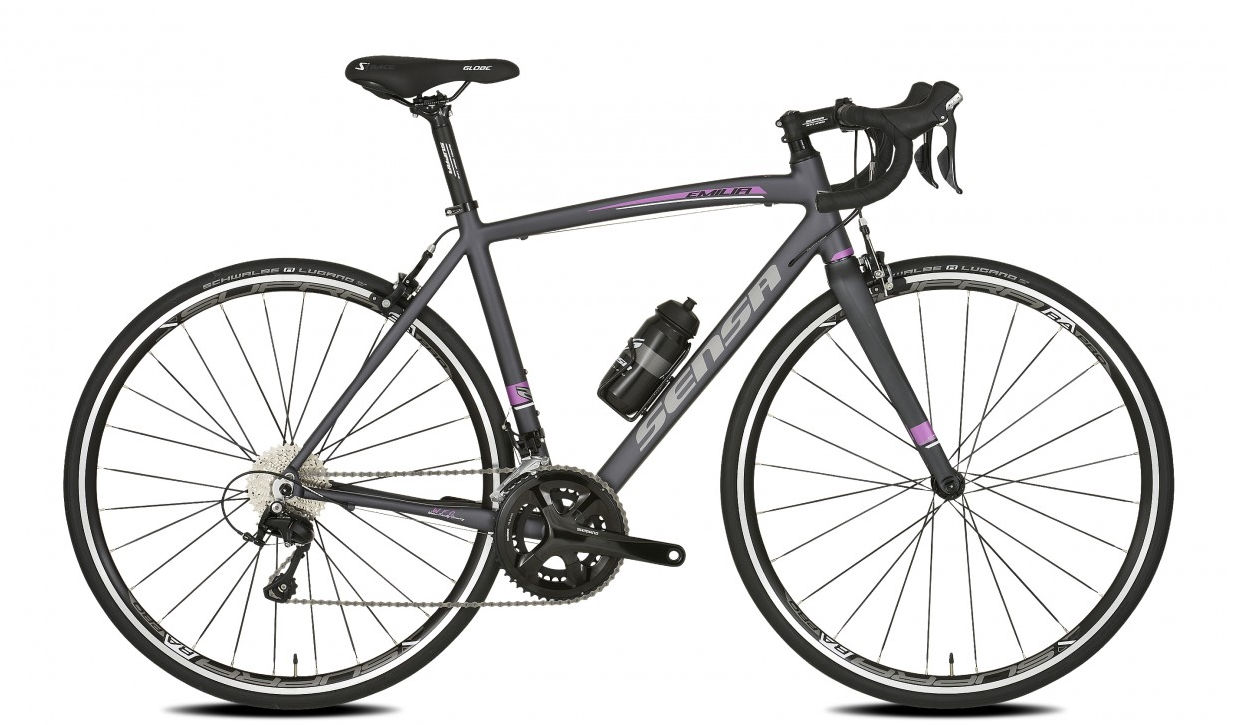

2018 Sensa Emilia geometry
Full frame geometry for the 2018 Sensa Emilia, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 540 | 364 | 74.5 | 71.5 | 140 | 518 | 480 | 779 | 68 | 972 | 45 |
| 51 | 554 | 369 | 74 | 71.5 | 155 | 528 | 510 | 802 | 68 | 983 | 45 |
| 54 | 567 | 376 | 74 | 72.5 | 165 | 539 | 540 | 825 | 68 | 984 | 45 |
| 56 | 581 | 384 | 74 | 72.5 | 180 | 551 | 560 | 842 | 68 | 997 | 45 |
All measurements in millimetres unless marked (°) for angles.
