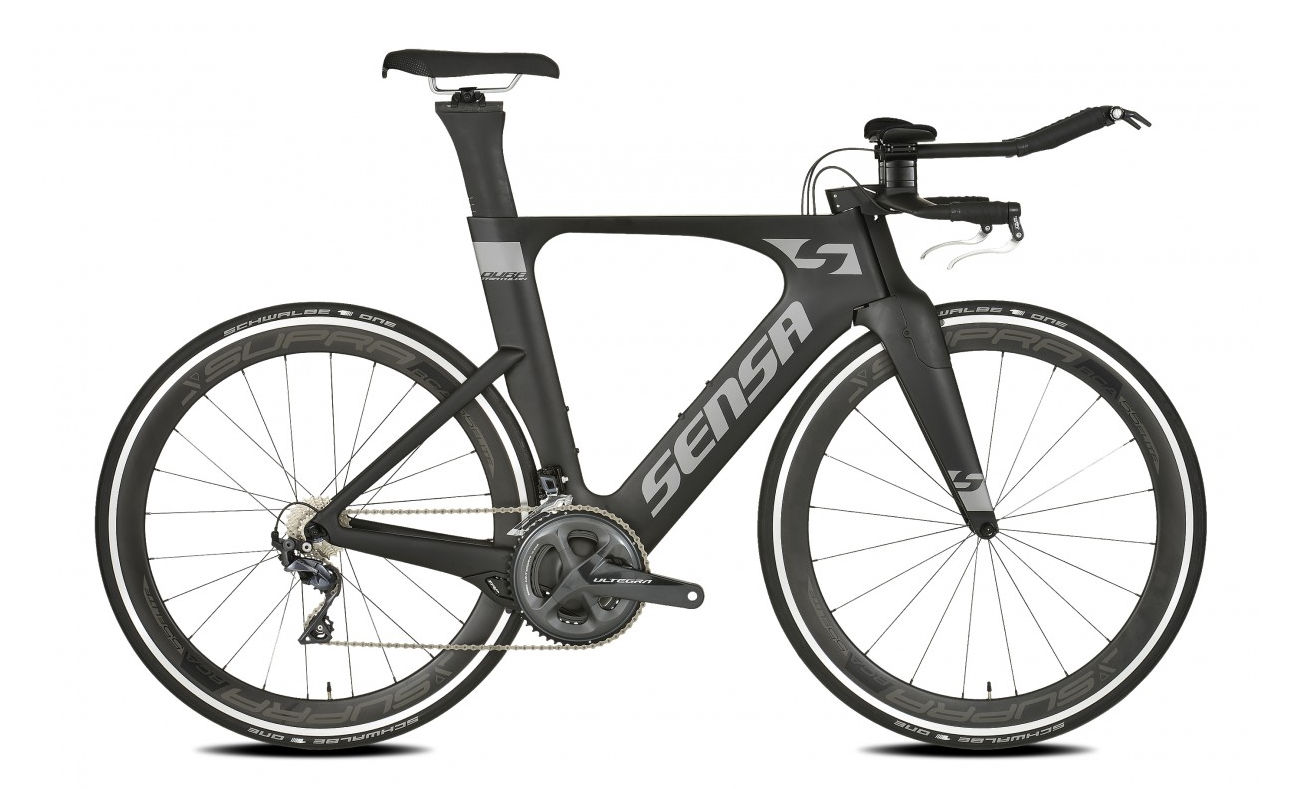

2018 Sensa Dura Triathlon geometry
Full frame geometry for the 2018 Sensa Dura Triathlon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 499 | 365 | 77 | 70.3 | 100 | 480 | 505 | 767 | 68 | 954 | 45 |
| S | 517 | 386 | 77 | 71.5 | 115 | 505 | 525 | 786 | 68 | 970 | 45 |
| M | 543 | 405 | 77 | 72 | 140 | 530 | 549 | 812 | 68 | 993 | 45 |
| L | 569 | 429 | 77 | 72.5 | 165 | 560 | 577 | 839 | 68 | 1021 | 45 |
| XL | 593 | 448 | 77 | 72.5 | 190 | 585 | 600 | 863 | 68 | 1048 | 45 |
All measurements in millimetres unless marked (°) for angles.
