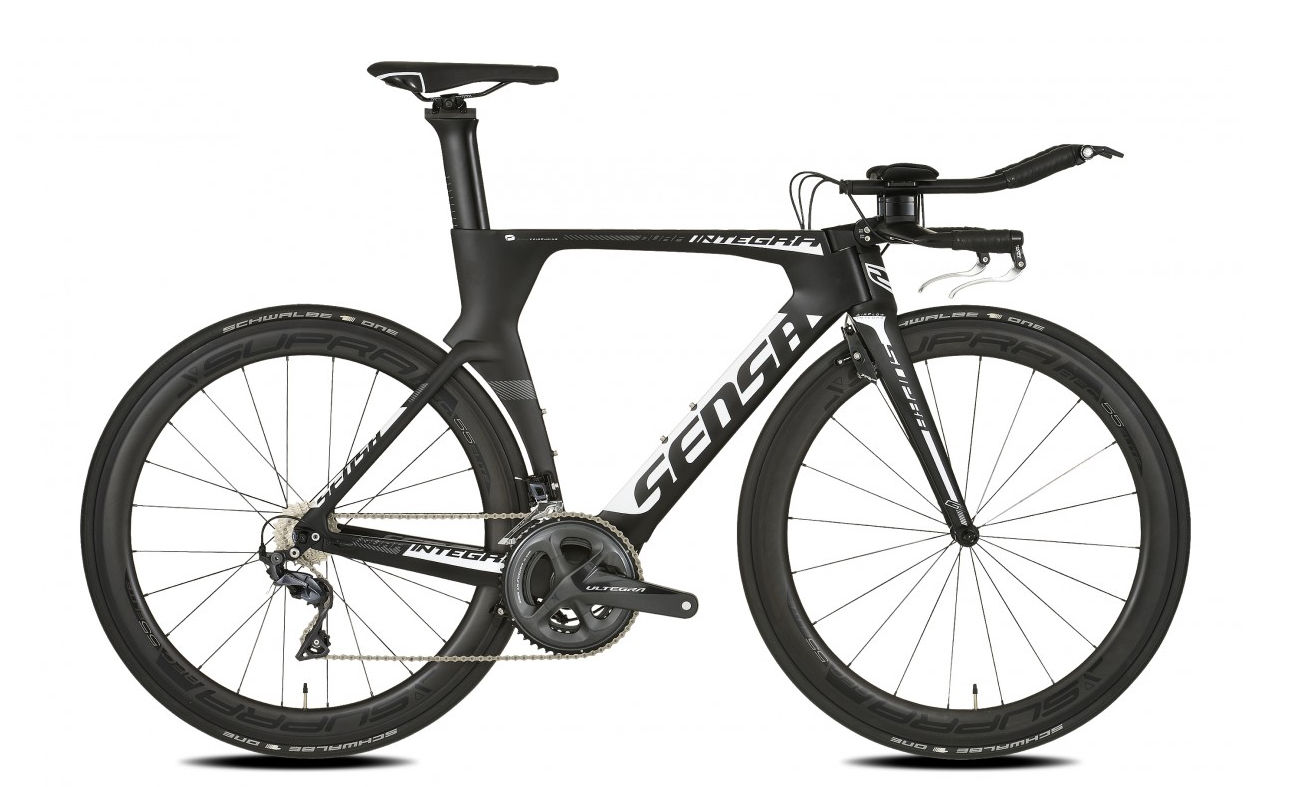

2018 Sensa Dura Integra geometry
Full frame geometry for the 2018 Sensa Dura Integra, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 482 | 383 | 75 | 72.5 | 72 | 512 | 528 | 773 | 68 | 946 | 45 |
| M | 492 | 401 | 75 | 72.5 | 82 | 533 | 537 | 782 | 68 | 967 | 45 |
| L | 508 | 415 | 75 | 72.5 | 99 | 551 | 550 | 797 | 68 | 987 | 45 |
| XL | 526 | 429 | 75 | 72.5 | 118 | 570 | 571 | 817 | 68 | 1006 | 45 |
All measurements in millimetres unless marked (°) for angles.
