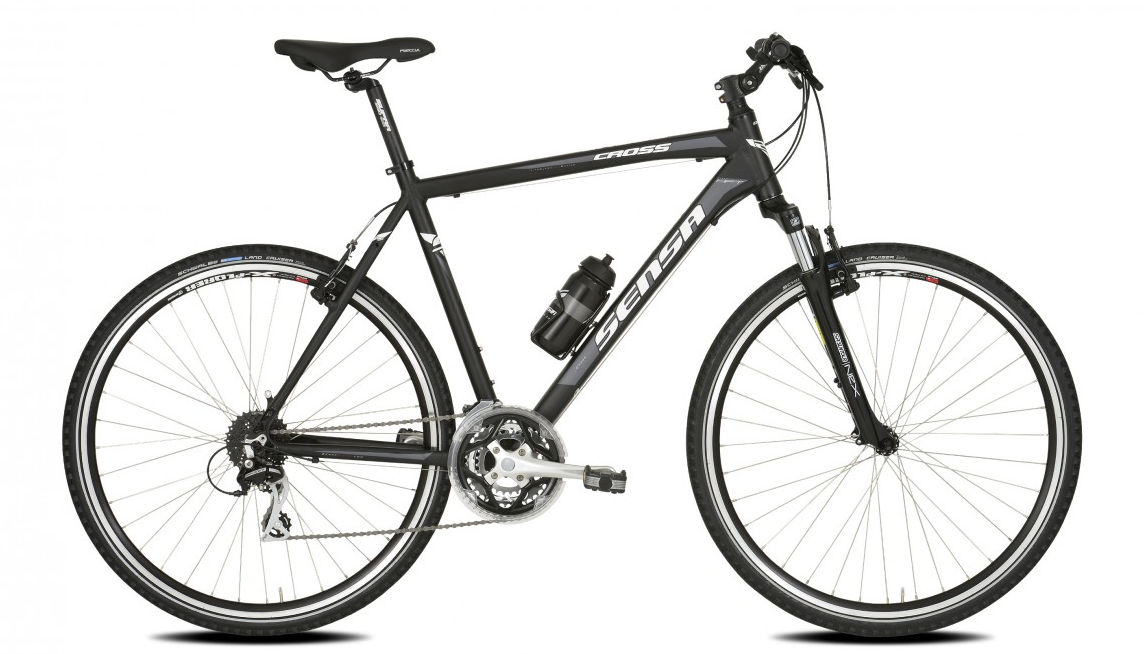

2018 Sensa Cross geometry
Full frame geometry for the 2018 Sensa Cross, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 19 | 595 | 409 | 72 | 71 | 150 | 597 | 483 | 810 | 68 | 1076 | 38 |
| 20 | 595 | 397 | 72 | 71 | 150 | 615 | 508 | 823 | 68 | 1096 | 38 |
| 21 | 595 | 425 | 72 | 71 | 150 | 617 | 533 | 836 | 68 | 1096 | 38 |
| 22 | 595 | 410 | 72 | 71 | 150 | 623 | 559 | 849 | 68 | 1101 | 38 |
| 24 | 614 | 411 | 72 | 71 | 170 | 626 | 610 | 886 | 68 | 1103 | 38 |
All measurements in millimetres unless marked (°) for angles.
