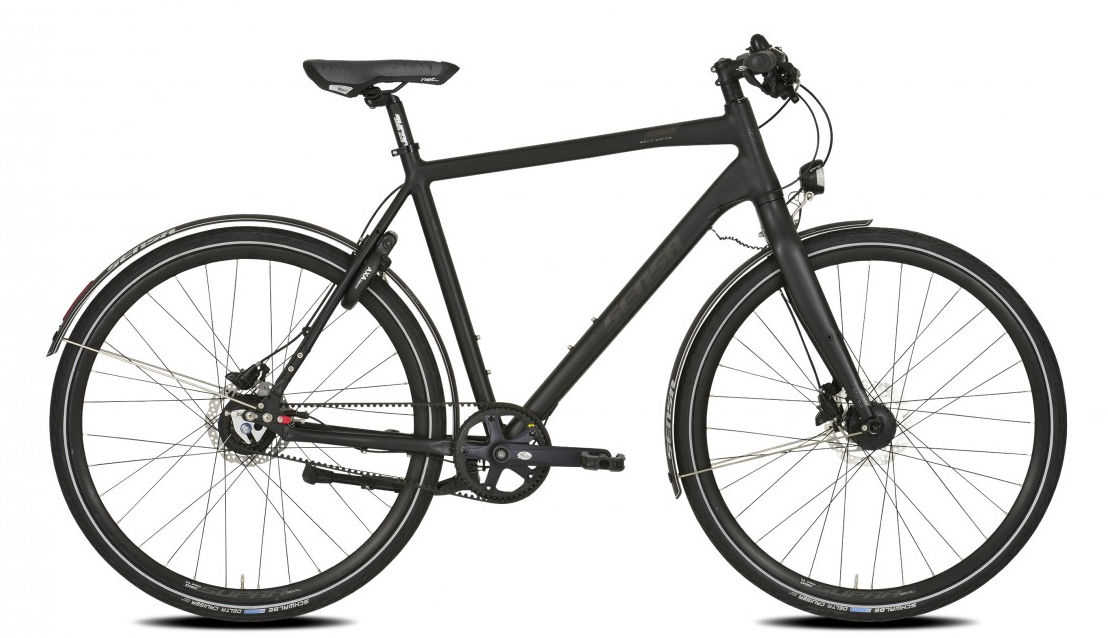

2018 Sensa Cintura Belt Drive geometry
Full frame geometry for the 2018 Sensa Cintura Belt Drive, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 602 | 408 | 72.5 | 70.5 | 170 | 598 | 508 | 825 | 68 | 1096 | 45 |
| 22 | 612 | 410 | 72.5 | 70.5 | 180 | 603 | 559 | 857 | 68 | 1101 | 45 |
| 24 | 630 | 410 | 72.5 | 70.5 | 200 | 609 | 610 | 893 | 68 | 1108 | 45 |
All measurements in millimetres unless marked (°) for angles.
