2018 Sensa · UDW

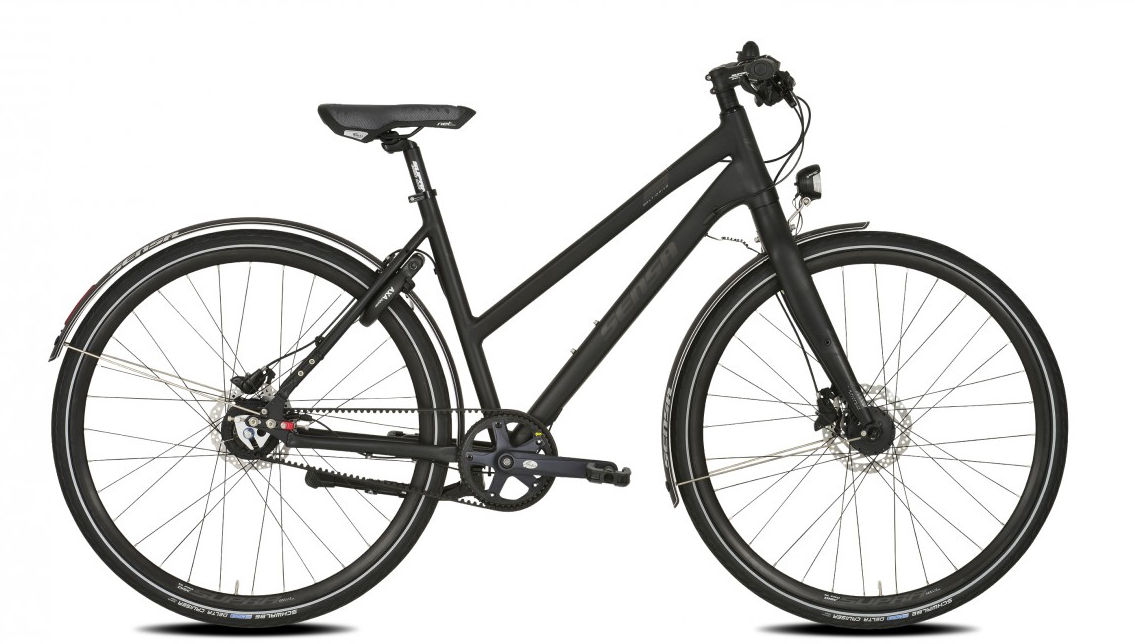

2018 Sensa Cintura Belt Drive Lady geometry
Full frame geometry for the 2018 Sensa Cintura Belt Drive Lady, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 19 | 602 | 388 | 72.5 | 70.5 | 170 | 578 | 483 | 812 | 68 | 1076 | 45 |
| 21 | 612 | 405 | 72.5 | 70.5 | 180 | 598 | 533 | 844 | 68 | 1096 | 45 |
All measurements in millimetres unless marked (°) for angles.
