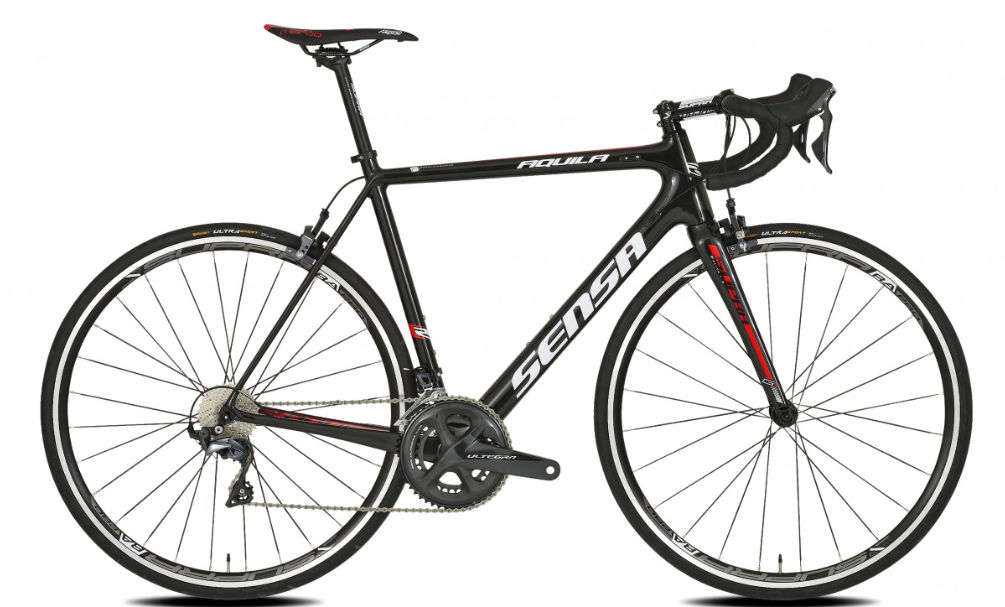

2018 Sensa Aquila geometry
Full frame geometry for the 2018 Sensa Aquila, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 516 | 381 | 74.5 | 72 | 115 | 523 | 505 | 780 | 68 | 976 | 45 |
| 53 | 547 | 385 | 74 | 73 | 145 | 542 | 535 | 812 | 68 | 982 | 45 |
| 55 | 562 | 391 | 73.5 | 73 | 160 | 557 | 555 | 831 | 68 | 992 | 45 |
| 58 | 590 | 394 | 73 | 73 | 190 | 574 | 585 | 861 | 68 | 1003 | 45 |
| 61 | 606 | 402 | 72.7 | 73.5 | 205 | 591 | 615 | 885 | 68 | 982 | 45 |
All measurements in millimetres unless marked (°) for angles.
