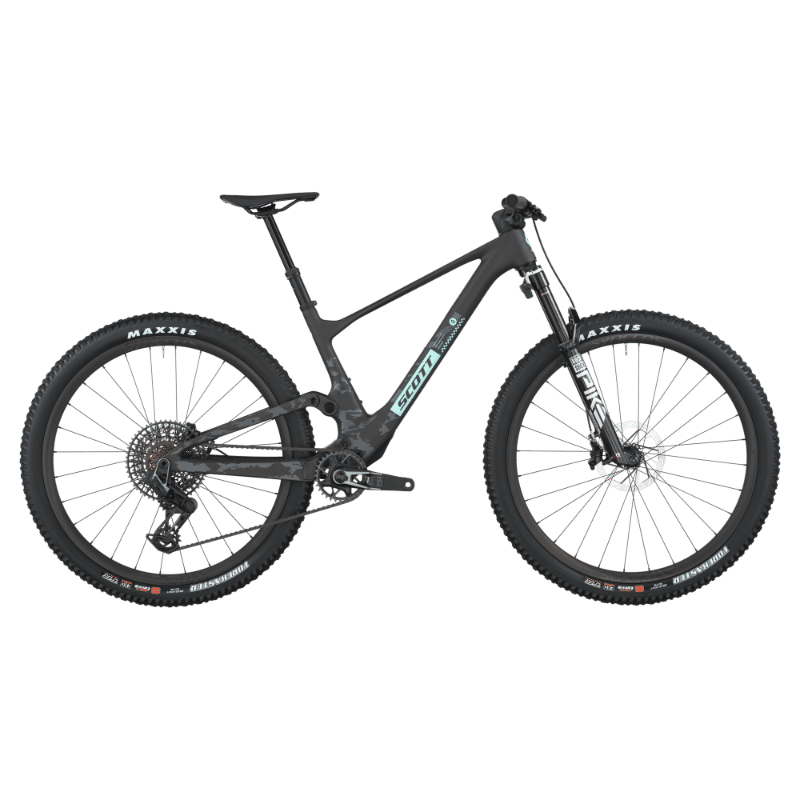

2026 Scott Spark geometry
Full frame geometry for the 2026 Scott Spark, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 607.5 | 440 | 75.9 | 65.8 | 90 | 589 | 440 | 767 | 43.5 | 437.5 | 1174 | 44 | 107 |
| S | 607.5 | 410 | 75.7 | 65.8 | 90 | 561 | 415 | 759 | 43.5 | 437.5 | 1145 | 44 | 107 |
| L | 617.7 | 470 | 76.4 | 65.8 | 105 | 613 | 490 | 778 | 43.5 | 437.5 | 1205 | 44 | 107 |
| XL | 627 | 500 | 76.7 | 65.8 | 115 | 641 | 540 | 801 | 43.5 | 437.5 | 1236 | 44 | 107 |
All measurements in millimetres unless marked (°) for angles.
