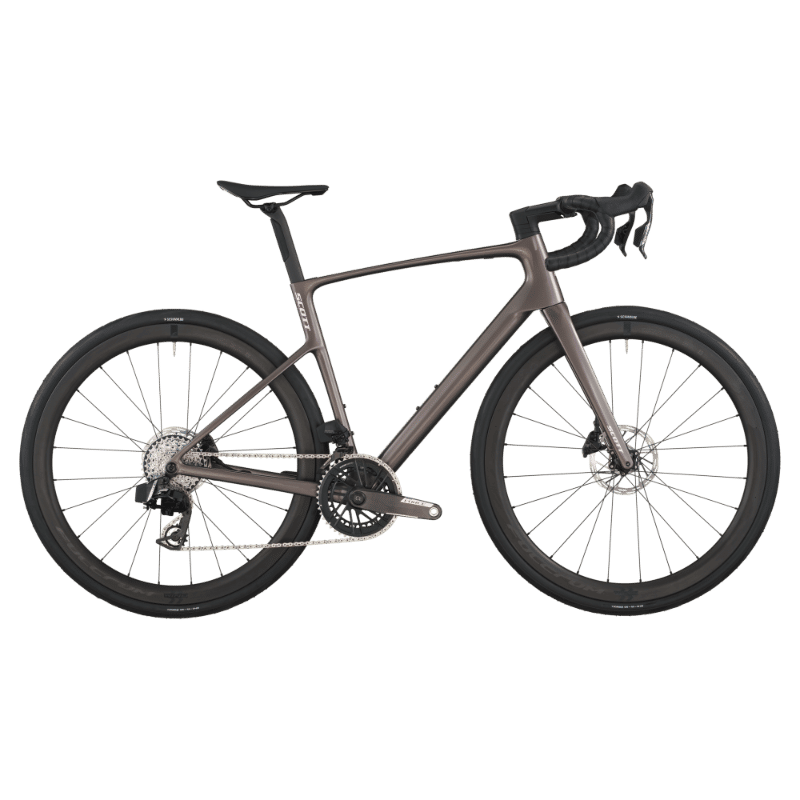

2026 Scott Addict geometry
Full frame geometry for the 2026 Scott Addict, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/47 | 522 | 372 | 75 | 71.3 | 104 | 511 | 435 | 742 | 74 | 418 | 984 | 47 |
| XS/49 | 534 | 378 | 75 | 71.8 | 115 | 521 | 455 | 758 | 74 | 418 | 991 | 47 |
| S/52 | 557 | 382 | 74.5 | 72 | 139 | 536 | 475 | 780 | 73 | 418 | 1000 | 47 |
| M/54 | 578 | 386 | 74 | 72.2 | 161 | 551 | 495 | 801 | 72 | 418 | 1009 | 47 |
| L/56 | 599 | 389 | 73.5 | 72.5 | 182 | 566 | 515 | 821 | 72 | 418 | 1016 | 47 |
| XL/58 | 619 | 394 | 73.1 | 73 | 201 | 582 | 535 | 840 | 72 | 418 | 1022 | 47 |
| XXL/61 | 638 | 402 | 73 | 73 | 221 | 597 | 565 | 865 | 72 | 418 | 1036 | 47 |
All measurements in millimetres unless marked (°) for angles.
