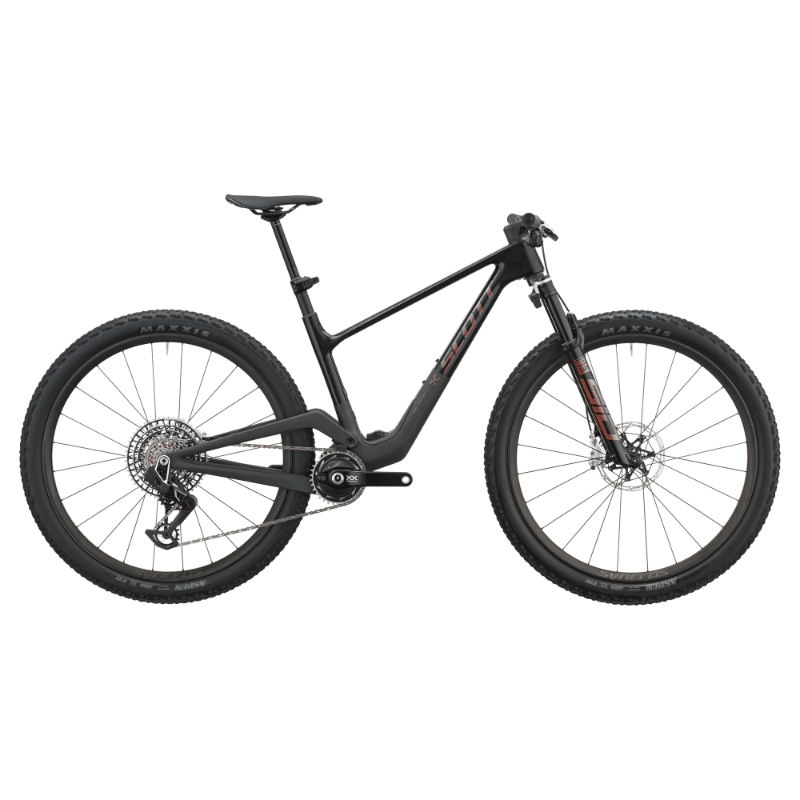

2027 Scott Spark RC geometry
Full frame geometry for the 2027 Scott Spark RC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 591 | 455 | 75.3 | 65.9 | 88 | 610 | 410 | 474 | 44 | 434 | 1180 | 120 |
| S | 591 | 430 | 76.4 | 65.9 | 88 | 573 | 385 | 733 | 44 | 434 | 1155 | 120 |
| L | 598 | 480 | 75.3 | 65.9 | 95 | 637 | 460 | 767 | 44 | 434 | 1208 | 120 |
| XL | 613 | 505 | 75.3 | 65.9 | 112 | 666 | 510 | 790 | 44 | 434 | 1240 | 120 |
All measurements in millimetres unless marked (°) for angles.
