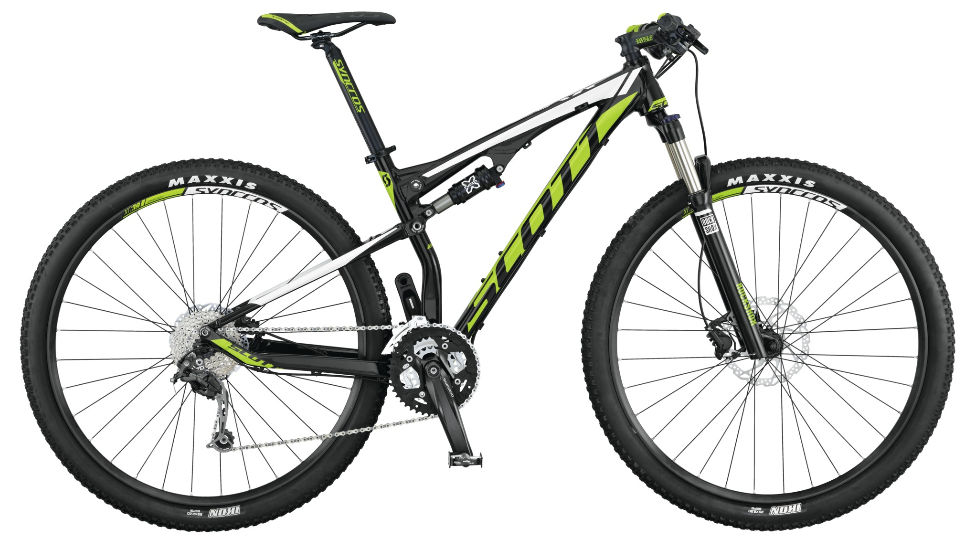

2015 Scott Spark geometry
Full frame geometry for the 2015 Scott Spark, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M-High | 602 | 416 | 73.1 | 70.1 | 105 | 598 | 440 | 768 | 41 | 667 | 448 | 1112 |
| S-High | 602 | 386 | 73.1 | 70.1 | 105 | 568 | 400 | 762 | 41 | 637 | 448 | 1082 |
| M-Low | 606 | 409 | 72.5 | 69.5 | 105 | 600 | 440 | 764 | 48 | 668 | 448 | 1112 |
| S-Low | 606 | 379 | 72.5 | 69.5 | 105 | 570 | 400 | 758 | 48 | 638 | 448 | 1082 |
| L-High | 611 | 442 | 73.1 | 70.1 | 115 | 628 | 481 | 806 | 41 | 698 | 448 | 1143 |
| L-Low | 615 | 436 | 72.5 | 69.5 | 115 | 630 | 481 | 802 | 48 | 699 | 448 | 1143 |
| XL-High | 623 | 456 | 73.1 | 70.1 | 125 | 649 | 541 | 836 | 41 | 718 | 448 | 1163 |
| XL-Low | 625 | 453 | 72.5 | 69.5 | 125 | 650 | 541 | 833 | 48 | 719 | 448 | 1163 |
All measurements in millimetres unless marked (°) for angles.
