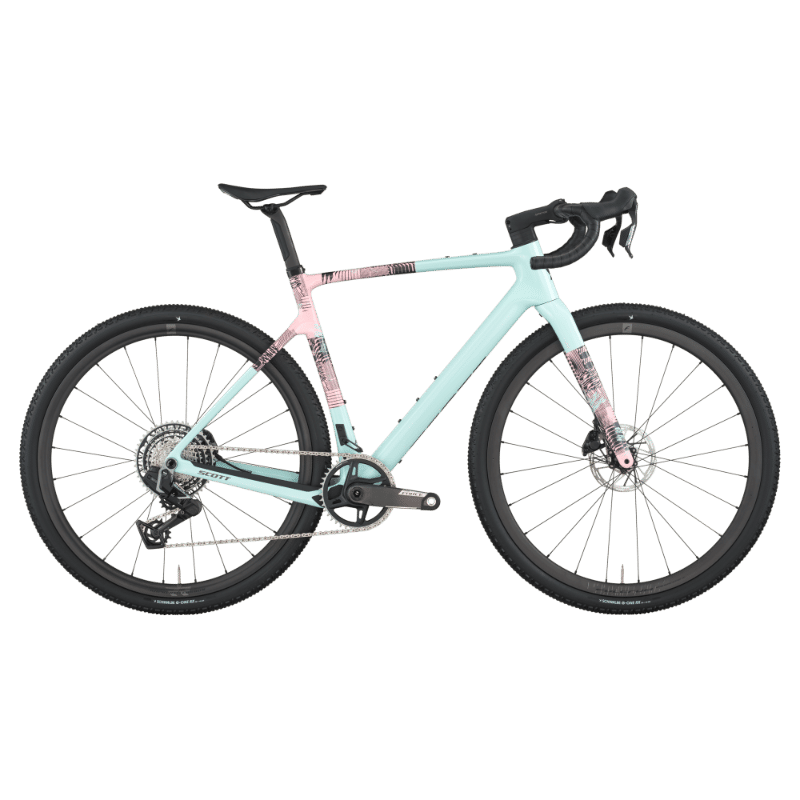

2026 Scott Addict Gravel geometry
Full frame geometry for the 2026 Scott Addict Gravel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/49 | 519 | 374.1 | 74.5 | 70 | 95 | 518 | 477 | 759 | 71 | 425 | 1009.4 |
| S/52 | 544.4 | 378.4 | 74 | 70 | 122 | 534.5 | 507 | 786 | 71 | 425 | 1022.9 |
| M/54 | 565.3 | 387.1 | 73.5 | 71 | 140 | 554.5 | 528 | 807 | 71 | 425 | 1029.2 |
| L/56 | 589.9 | 398.2 | 73 | 71 | 166 | 578.5 | 546 | 828 | 71 | 425 | 1048.7 |
| XL/58 | 609.7 | 406.1 | 73 | 71 | 187 | 592.5 | 566 | 847 | 71 | 425 | 1063.5 |
All measurements in millimetres unless marked (°) for angles.
