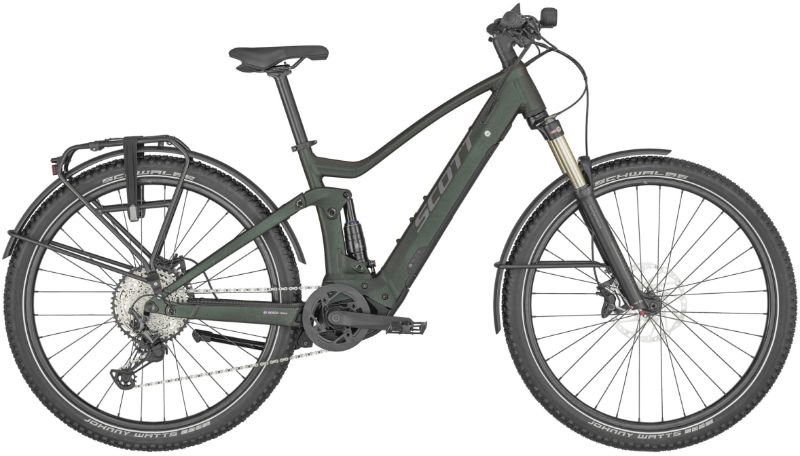

2026 Scott Axis FS eRIDE geometry
Full frame geometry for the 2026 Scott Axis FS eRIDE, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 641.6 | 440.5 | 77.6 | 65.4 | 120 | 578.2 | 405 | 715 | 37.3 | 453.5 | 1218.5 | 44 | 123.9 |
| M | 646 | 460.3 | 77.4 | 65.4 | 125 | 604.5 | 435 | 715 | 37.2 | 453.5 | 1240.7 | 44 | 124 |
| L | 654.8 | 485.7 | 77.3 | 65.3 | 135 | 625.4 | 470 | 725 | 37 | 453.5 | 1270.5 | 44 | 124.2 |
| XL | 663.5 | 515.1 | 77.3 | 65.3 | 145 | 655.8 | 500 | 728 | 36.9 | 453.5 | 1304.3 | 44 | 124.4 |
All measurements in millimetres unless marked (°) for angles.
