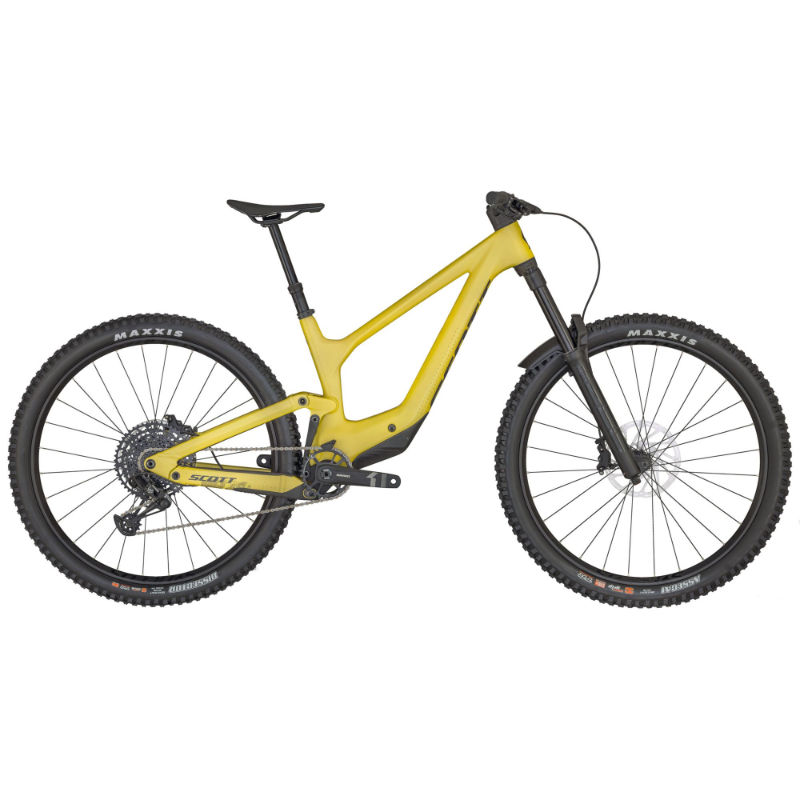

2026 Scott Ransom geometry
Full frame geometry for the 2026 Scott Ransom, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 614.8 | 428 | 77 | 63.8 | 95 | 569.9 | 380 | 719.2 | -25 | 440 | 1206.6 | 42 | 135.5 |
| M | 619.3 | 458 | 77.2 | 63.8 | 100 | 598.7 | 410 | 725.4 | -25 | 440 | 1238.8 | 42 | 135.5 |
| L | 632.8 | 483 | 77.4 | 63.8 | 115 | 624.4 | 440 | 736.7 | -25 | 440 | 1270.4 | 42 | 135.5 |
| XL | 641.7 | 508 | 77.6 | 63.8 | 125 | 649.1 | 470 | 755.3 | -25 | 440 | 1299.8 | 42 | 135.5 |
All measurements in millimetres unless marked (°) for angles.
