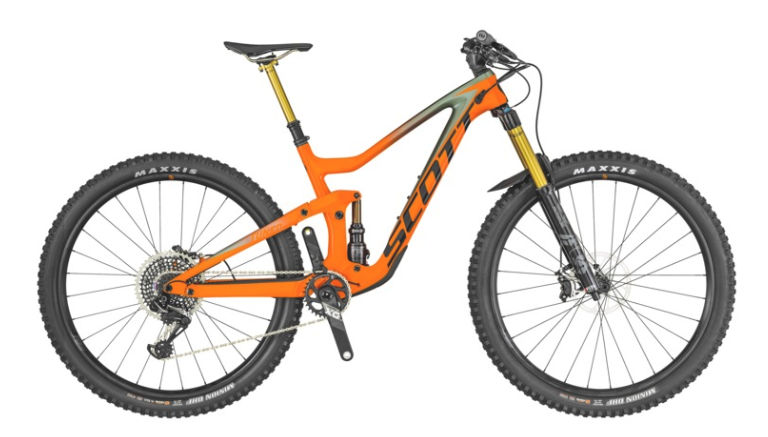

2019 Scott Ransom geometry
Full frame geometry for the 2019 Scott Ransom, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M-High | 610 | 445 | 75.5 | 65 | 100 | 603 | 440 | 736 | 15 | 436 | 1214 |
| S-High | 610 | 412 | 75.5 | 65 | 100 | 570 | 420 | 734 | 15 | 436 | 1181 |
| M-Low | 614 | 440 | 75 | 64.5 | 100 | 604 | 440 | 746 | 22 | 438 | 1216 |
| S-Low | 614 | 406 | 75 | 64.5 | 100 | 571 | 420 | 745 | 22 | 438 | 1183 |
| L-High | 623 | 472 | 75.5 | 65 | 115 | 633 | 470 | 752 | 15 | 436 | 1248 |
| L-Low | 628 | 466 | 75 | 64.5 | 115 | 635 | 470 | 761 | 22 | 438 | 1249 |
| XL-High | 637 | 505 | 75.5 | 65 | 130 | 670 | 500 | 767 | 15 | 436 | 1287 |
| XL-Low | 641 | 500 | 75 | 64.5 | 130 | 671 | 500 | 776 | 22 | 438 | 1288 |
All measurements in millimetres unless marked (°) for angles.
