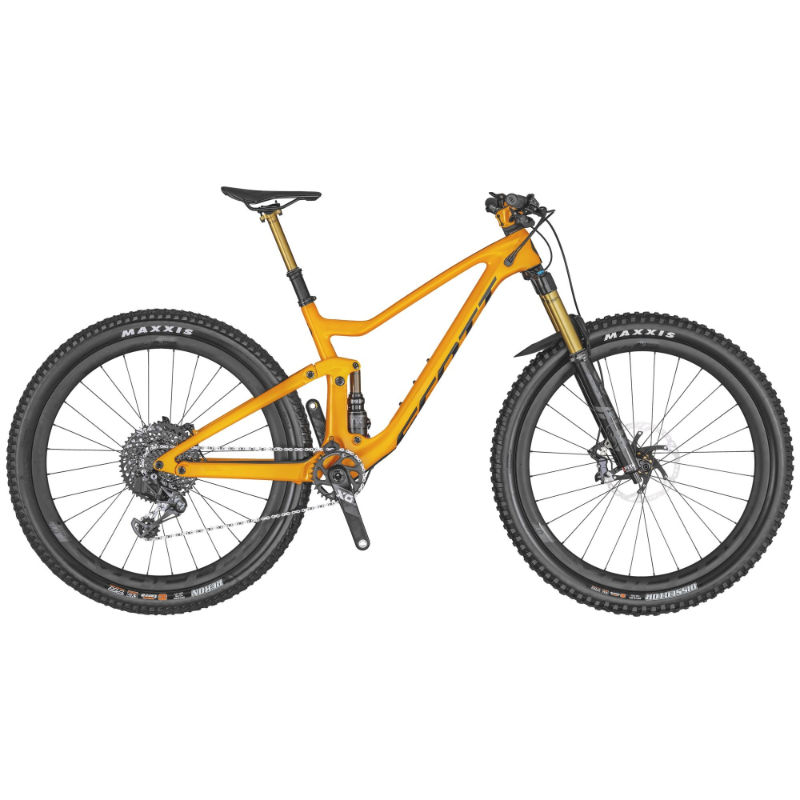

2026 Scott Genius geometry
Full frame geometry for the 2026 Scott Genius, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 599.7 | 405.9 | 74.7 | 65 | 95 | 569.7 | 410 | 739.6 | 27.4 | 438 | 1165.9 | 44 | 117.7 |
| M | 599.9 | 439.1 | 74.7 | 65 | 95 | 602.8 | 440 | 740.8 | 27.5 | 438 | 1198.9 | 44 | 117.6 |
| L | 613.7 | 466.1 | 74.8 | 65 | 110 | 633.4 | 480 | 758.4 | 27.6 | 438 | 1232.1 | 44 | 117.5 |
| XL | 627.5 | 499.2 | 74.8 | 65 | 125 | 670.1 | 520 | 774.1 | 27.8 | 438 | 1271.3 | 44 | 117.4 |
All measurements in millimetres unless marked (°) for angles.
