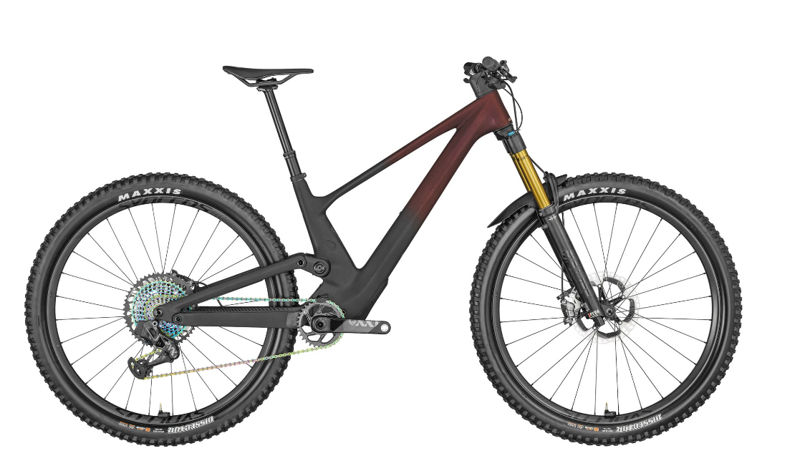

2023 Scott Genius geometry
Full frame geometry for the 2023 Scott Genius, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 617 | 430 | 76.8 | 65.1 | 90 | 570.1 | 380 | 728.5 | 440 | -33 | 125.8 |
| M | 626.1 | 460 | 77.1 | 65.1 | 100 | 602.2 | 410 | 738.5 | 440 | -33 | 125.8 |
| L | 644.2 | 485 | 77.2 | 65.1 | 120 | 631.3 | 440 | 753.5 | 440 | -33 | 125.8 |
| XL | 657.8 | 510 | 77.4 | 65.1 | 135 | 659.3 | 470 | 768.5 | 440 | -33 | 125.8 |
All measurements in millimetres unless marked (°) for angles.
