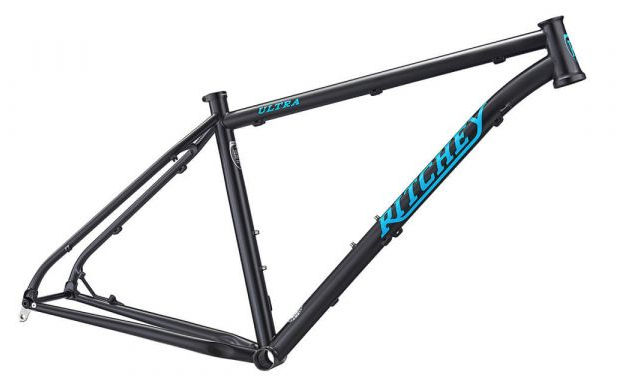

2018 Ritchey Ultra geometry
Full frame geometry for the 2018 Ritchey Ultra, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S (16) | 606 | 417 | 74 | 68 | 100 | 591 | 390 | 742 | 58 | 696 | 439 | 1128 | 51 | 95 |
| M/17 | 613 | 430 | 74 | 68.5 | 105 | 606 | 432 | 771 | 58 | 706 | 439 | 1138 | 51 | 92 |
| L/19 | 617 | 445 | 73.5 | 68.5 | 110 | 628 | 475 | 800 | 58 | 722 | 439 | 1155 | 51 | 92 |
| XL/20.5 | 627 | 460 | 73.5 | 68.5 | 120 | 644 | 515 | 827 | 58 | 741 | 439 | 1174 | 51 | 92 |
All measurements in millimetres unless marked (°) for angles.
