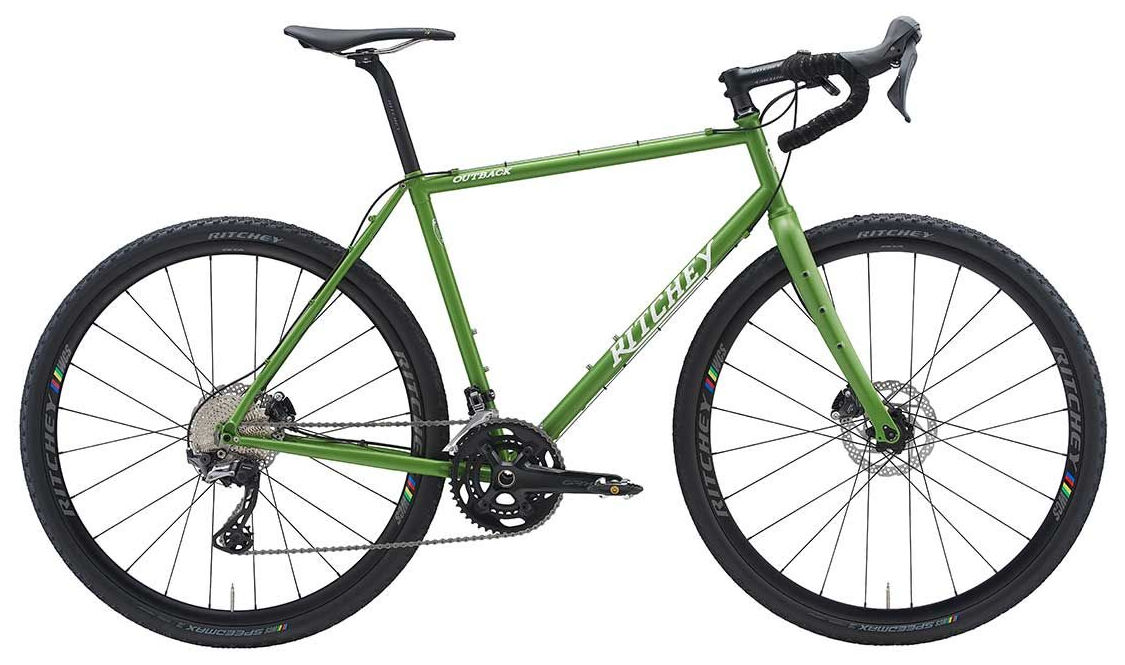

2020 Ritchey Outback V2 geometry
Full frame geometry for the 2020 Ritchey Outback V2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 532 | 373 | 74 | 69.5 | 115 | 526 | 440 | 754 | 70 | 603 | 453 | 1046 | 50 | 81 |
| S | 548 | 378 | 73.5 | 70 | 130 | 541 | 465 | 773 | 70 | 609 | 453 | 1053 | 50 | 77 |
| M | 566 | 383 | 73 | 70.5 | 150 | 556 | 490 | 796 | 68 | 616 | 453 | 1060 | 50 | 74 |
| L | 587 | 390 | 73 | 71 | 170 | 570 | 515 | 818 | 68 | 625 | 453 | 1070 | 50 | 71 |
| XL | 606 | 395 | 73 | 71 | 190 | 581 | 540 | 839 | 68 | 637 | 453 | 1081 | 50 | 71 |
All measurements in millimetres unless marked (°) for angles.
