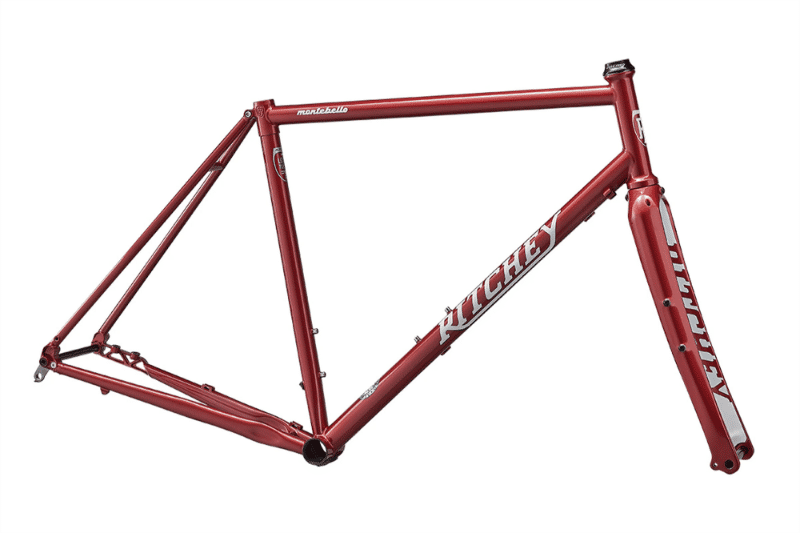

2026 Ritchey Montebello geometry
Full frame geometry for the 2026 Ritchey Montebello, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 551 | 380 | 75 | 71 | 120 | 528 | 465 | 756 | 80 | 429 | 1015 | 48 |
| S | 572 | 385 | 74.5 | 71.5 | 140 | 544 | 490 | 778 | 80 | 429 | 1022 | 48 |
| M | 593 | 390 | 74 | 72 | 160 | 560 | 515 | 800 | 80 | 429 | 1029 | 48 |
| L | 610 | 394 | 73.5 | 72 | 180 | 575 | 540 | 822 | 78 | 429 | 1039 | 48 |
| XL | 631 | 400 | 73.5 | 72.5 | 200 | 587 | 570 | 847 | 78 | 429 | 1047 | 48 |
| XXL | 650 | 409 | 73.5 | 72.5 | 220 | 602 | 600 | 871 | 78 | 429 | 1062 | 48 |
All measurements in millimetres unless marked (°) for angles.
