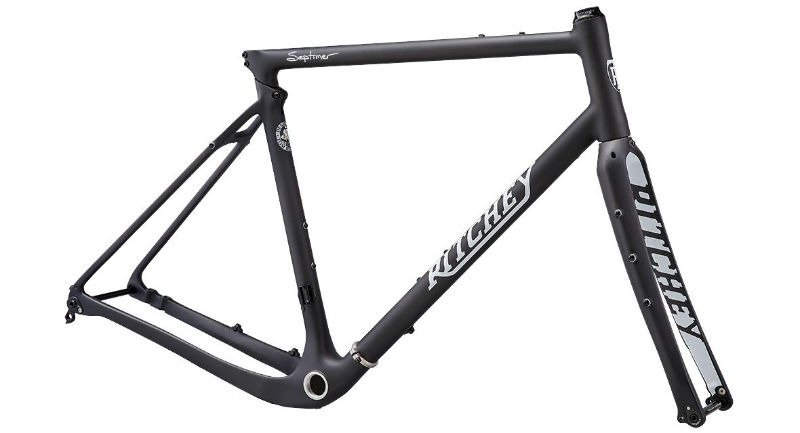

2026 Ritchey Septimer geometry
Full frame geometry for the 2026 Ritchey Septimer, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 542 | 380 | 74 | 71 | 120 | 535 | 480 | 775 | 75 | 440 | 1027 | 50 |
| M | 569 | 388 | 73.5 | 70.8 | 150 | 557 | 515 | 809 | 75 | 440 | 1046 | 50 |
| L | 591 | 400 | 73.5 | 71.5 | 170 | 575 | 525 | 824 | 75 | 440 | 1059 | 50 |
| XL | 614 | 415 | 73 | 72.5 | 190 | 603 | 535 | 838 | 75 | 440 | 1071 | 50 |
All measurements in millimetres unless marked (°) for angles.
