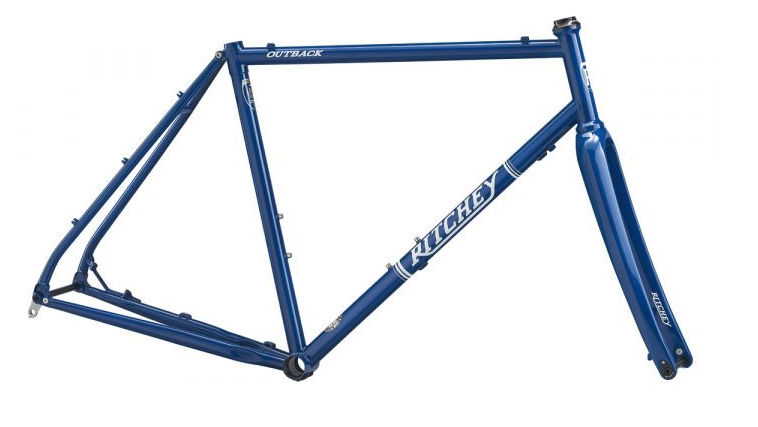

2018 Ritchey Outback geometry
Full frame geometry for the 2018 Ritchey Outback, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 380 | 75 | 71 | 100 | 523 | 450 | 731 | 70 | 588 | 437 | 1015 | 47 | 71 |
| S | 531 | 385 | 74 | 72 | 115 | 537 | 475 | 752 | 70 | 593 | 437 | 1020 | 47 | 65 |
| M | 557 | 388 | 74 | 72 | 140 | 553 | 500 | 776 | 70 | 600 | 437 | 1027 | 47 | 65 |
| L | 576 | 395 | 74 | 72 | 160 | 566 | 525 | 798 | 70 | 613 | 437 | 1040 | 47 | 65 |
| XL | 596 | 401 | 73 | 73 | 180 | 583 | 550 | 820 | 70 | 620 | 437 | 1047 | 47 | 58 |
All measurements in millimetres unless marked (°) for angles.
