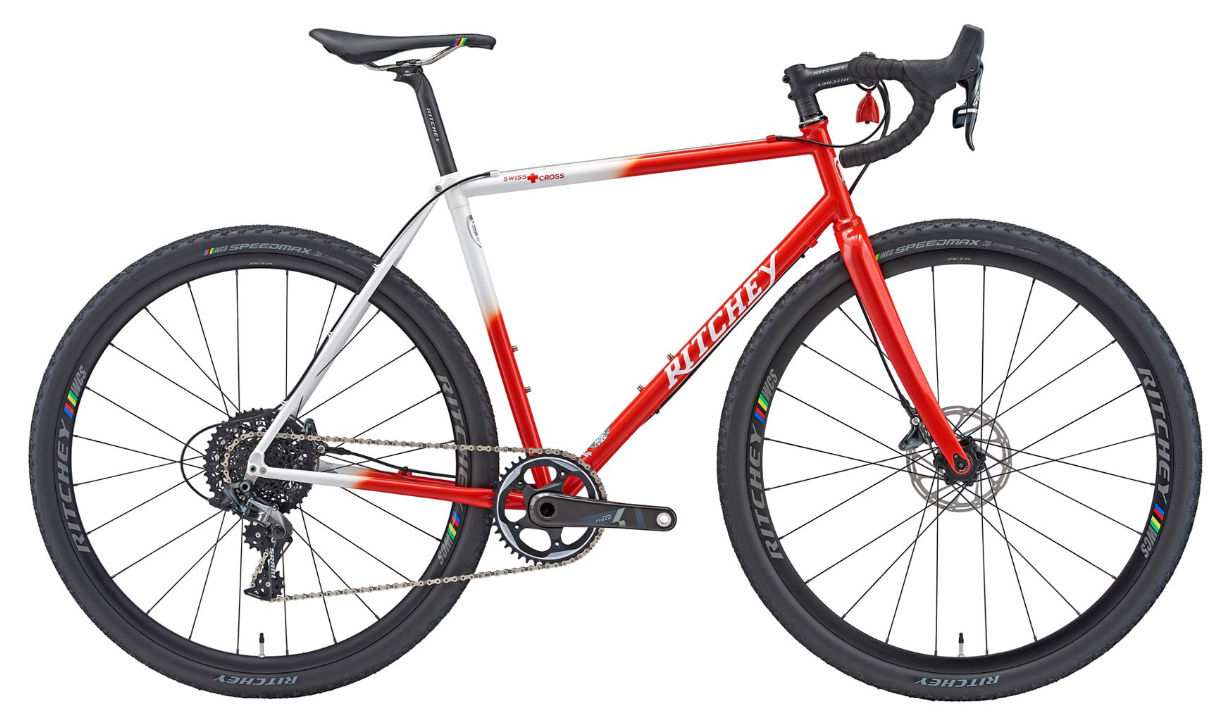

2019 Ritchey Swiss Cross Disc MK III geometry
Full frame geometry for the 2019 Ritchey Swiss Cross Disc MK III, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 376 | 75 | 71 | 105 | 514 | 440 | 746 | 65 | 437 | 1013 | 47 |
| S | 531 | 382 | 74.5 | 71.5 | 120 | 530 | 465 | 766 | 65 | 437 | 1020 | 47 |
| M | 550 | 388 | 74 | 72 | 140 | 546 | 490 | 789 | 63 | 437 | 1028 | 47 |
| L | 569 | 393 | 73.5 | 72 | 160 | 562 | 515 | 810 | 63 | 437 | 1039 | 47 |
| XL | 590 | 400 | 73 | 72.5 | 180 | 580 | 540 | 832 | 63 | 437 | 1048 | 47 |
| XXL | 609 | 405 | 73 | 72.5 | 200 | 591 | 565 | 854 | 63 | 437 | 1059 | 47 |
All measurements in millimetres unless marked (°) for angles.
