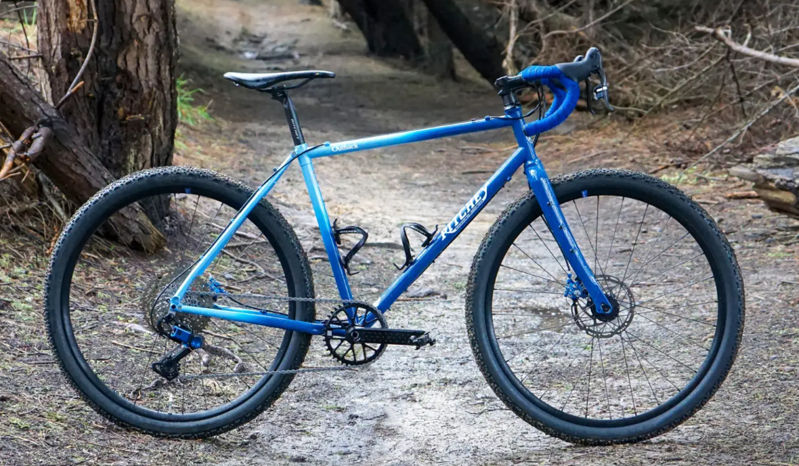

2023 Ritchey Outback 50th Anniversary geometry
Full frame geometry for the 2023 Ritchey Outback 50th Anniversary, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 531.7 | 373 | 74 | 69.5 | 115 | 525.9 | 440 | 753.5 | 70 | 453 | 1046.5 | 50 |
| S | 547.7 | 378 | 73.5 | 70 | 130 | 540.6 | 465 | 772.8 | 70 | 453 | 1052.6 | 50 |
| M | 566.5 | 383 | 73 | 70.5 | 150 | 556.5 | 490 | 795.5 | 68 | 453 | 1060.4 | 50 |
| L | 587.4 | 390 | 73 | 71 | 170 | 569.8 | 515 | 817.8 | 68 | 453 | 1069.6 | 50 |
| XL | 606.3 | 395 | 73 | 71 | 190 | 580.6 | 540 | 839.1 | 68 | 453 | 1081.1 | 50 |
All measurements in millimetres unless marked (°) for angles.
