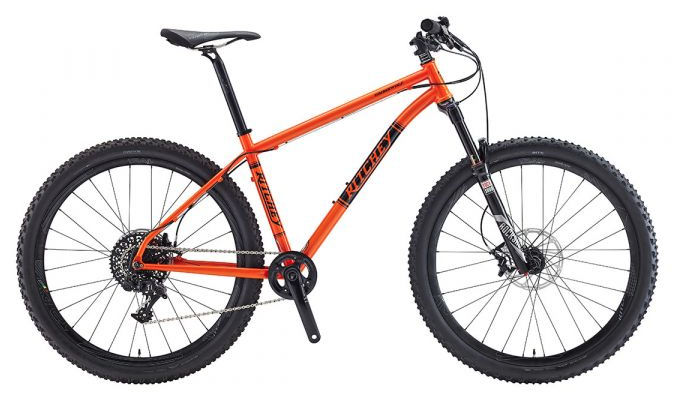

2018 Ritchey Timberwolf geometry
Full frame geometry for the 2018 Ritchey Timberwolf, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S (15) | 578 | 381 | 72 | 67 | 100 | 570 | 375 | 735 | 40 | 658 | 432 | 1087 | 44 | 102 |
| M/17 | 592 | 386 | 71.5 | 67 | 115 | 585 | 425 | 771 | 40 | 669 | 432 | 1098 | 44 | 102 |
| L/19 | 605 | 406 | 71.5 | 67 | 130 | 610 | 480 | 807 | 40 | 695 | 432 | 1124 | 44 | 102 |
All measurements in millimetres unless marked (°) for angles.
