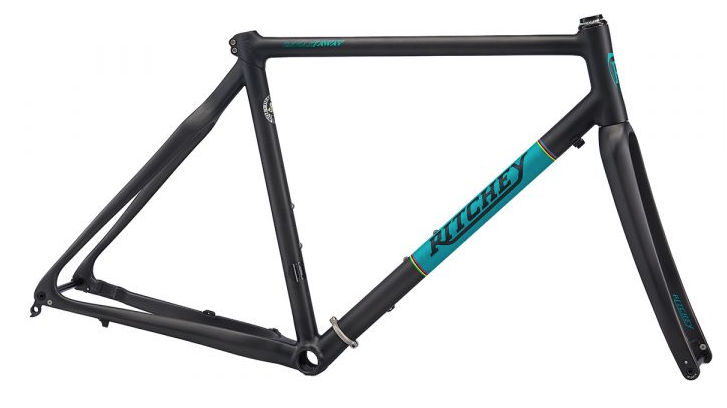

2018 Ritchey Outback Carbon Break-Away geometry
Full frame geometry for the 2018 Ritchey Outback Carbon Break-Away, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 509 | 379 | 74.5 | 71.5 | 100 | 522 | 480 | 748 | 67 | 580 | 430 | 1001 | 47 | 68 |
| S | 510 | 390 | 74.5 | 72 | 100 | 532 | 480 | 751 | 67 | 587 | 430 | 1008 | 47 | 65 |
| M | 529 | 399 | 74 | 72.5 | 120 | 552 | 490 | 764 | 65 | 598 | 430 | 1020 | 47 | 61 |
| L | 559 | 402 | 73.5 | 73 | 150 | 568 | 530 | 802 | 65 | 605 | 430 | 1027 | 47 | 58 |
| XL | 588 | 407 | 73.5 | 73 | 180 | 587 | 550 | 821 | 65 | 619 | 430 | 1041 | 47 | 58 |
All measurements in millimetres unless marked (°) for angles.
