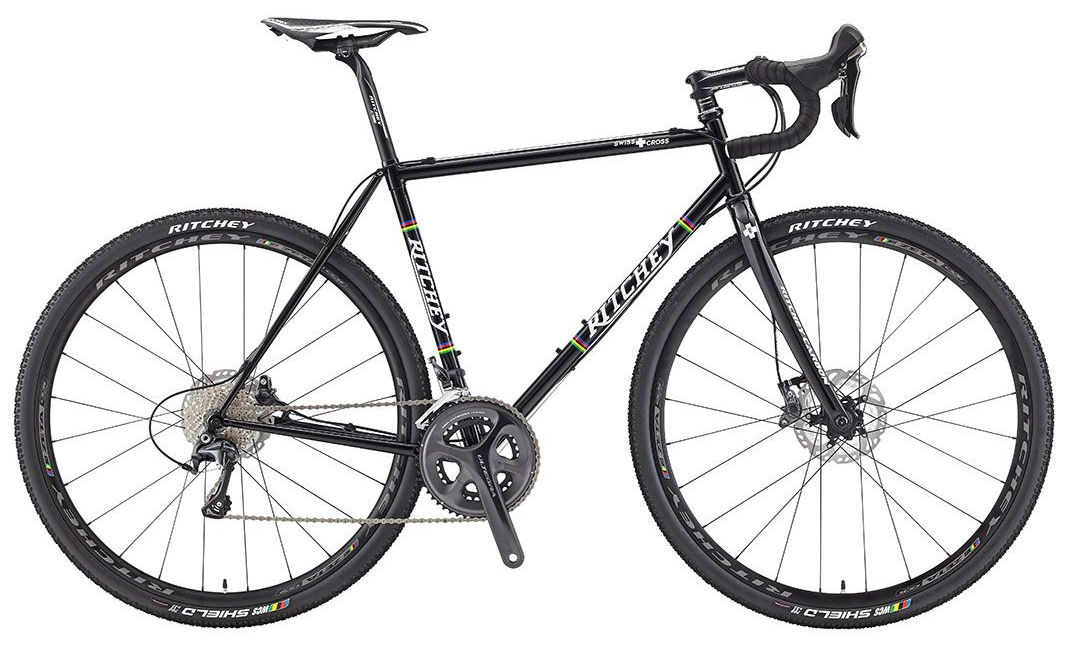

2018 Ritchey Swiss Cross Disc MK II geometry
Full frame geometry for the 2018 Ritchey Swiss Cross Disc MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 520 | 370 | 74.5 | 71 | 100 | 515 | 460 | 754 | 63 | 579 | 433 | 1004 | 45 | 73 |
| 51 | 536 | 373 | 74 | 71.5 | 115 | 527 | 475 | 769 | 63 | 582 | 433 | 1007 | 45 | 69 |
| 53 | 551 | 382 | 74 | 71.5 | 130 | 540 | 495 | 786 | 63 | 596 | 433 | 1021 | 45 | 69 |
| 55 | 571 | 386 | 73.5 | 72 | 150 | 555 | 515 | 804 | 63 | 602 | 433 | 1027 | 45 | 66 |
| 57 | 590 | 393 | 73.5 | 72 | 170 | 568 | 535 | 824 | 63 | 615 | 433 | 1040 | 45 | 66 |
| 59 | 609 | 394 | 73 | 72 | 190 | 580 | 555 | 843 | 63 | 622 | 433 | 1047 | 45 | 66 |
All measurements in millimetres unless marked (°) for angles.
