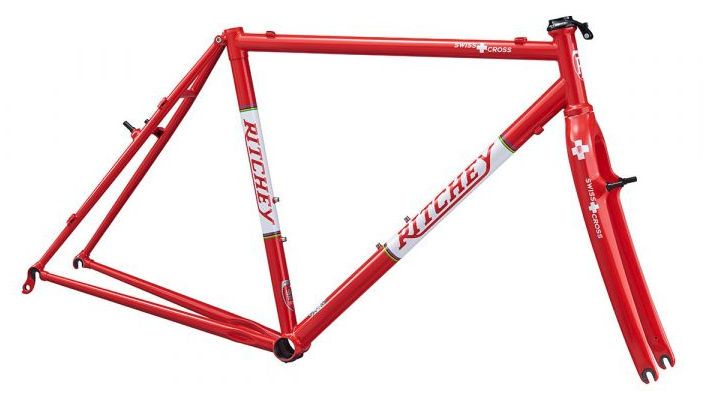

2018 Ritchey Swiss Cross Canti MK II geometry
Full frame geometry for the 2018 Ritchey Swiss Cross Canti MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 519 | 376 | 74.5 | 71.5 | 100 | 520 | 480 | 762 | 65 | 579 | 425 | 995 | 45 | 69 |
| S | 535 | 380 | 74 | 72 | 115 | 534 | 495 | 777 | 65 | 584 | 425 | 1000 | 45 | 66 |
| M | 552 | 387 | 73.5 | 72.5 | 130 | 550 | 515 | 794 | 65 | 591 | 425 | 1007 | 45 | 63 |
| L | 570 | 394 | 73.5 | 72.5 | 150 | 563 | 535 | 813 | 65 | 605 | 425 | 1021 | 45 | 63 |
| XL | 592 | 399 | 73 | 73 | 170 | 580 | 560 | 835 | 65 | 610 | 425 | 1027 | 45 | 60 |
All measurements in millimetres unless marked (°) for angles.
