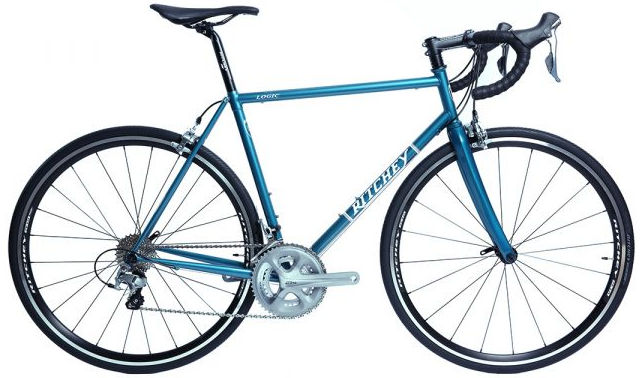

2015 Ritchey Road Logic geometry
Full frame geometry for the 2015 Ritchey Road Logic, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 507 | 382 | 75 | 72 | 100 | 518 | 465 | 727 | 72 | 572 | 410 | 974 | 45 | 61 |
| 51 | 523 | 387 | 74.5 | 72.5 | 115 | 532 | 485 | 745 | 72 | 577 | 410 | 980 | 45 | 58 |
| 53 | 549 | 388 | 74 | 73 | 140 | 545 | 515 | 772 | 72 | 582 | 410 | 984 | 45 | 55 |
| 55 | 568 | 392 | 73.5 | 73.5 | 160 | 560 | 525 | 780 | 70 | 585 | 410 | 988 | 43 | 54 |
| 57 | 587 | 401 | 73.5 | 73.5 | 180 | 575 | 545 | 807 | 70 | 600 | 410 | 1003 | 43 | 54 |
| 59 | 609 | 410 | 73.5 | 73.5 | 200 | 590 | 565 | 826 | 70 | 614 | 410 | 1018 | 43 | 54 |
All measurements in millimetres unless marked (°) for angles.
