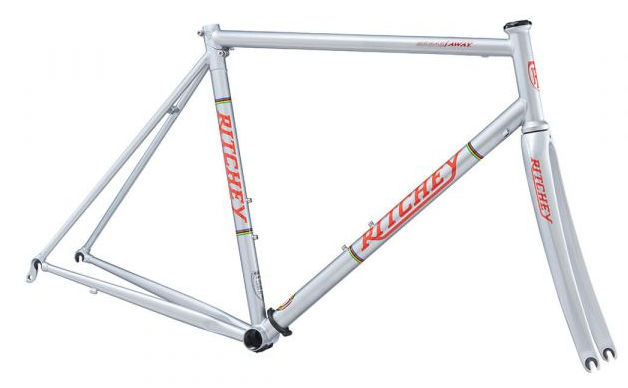

2018 Ritchey Road Break-Away geometry
Full frame geometry for the 2018 Ritchey Road Break-Away, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 521 | 378 | 74.5 | 72 | 115 | 524 | 470 | 742 | 72 | 577 | 410 | 976 | 46 | 61 |
| S | 537 | 381 | 74 | 72.5 | 130 | 536 | 495 | 763 | 72 | 581 | 410 | 980 | 46 | 58 |
| M | 556 | 385 | 73.5 | 73 | 150 | 550 | 520 | 786 | 70 | 586 | 415 | 991 | 46 | 55 |
| L | 578 | 394 | 73.5 | 73.5 | 170 | 565 | 545 | 809 | 70 | 593 | 415 | 998 | 43 | 55 |
| XL | 597 | 400 | 73 | 73.5 | 190 | 582 | 570 | 831 | 70 | 605 | 415 | 1010 | 43 | 55 |
All measurements in millimetres unless marked (°) for angles.
